Map interfaces

How to map interfaces and switch ports to a Virtual Machine?

Map interfaces to your VM allows you to use the physical ports of the Nodegrid in your virtualized environment.
For that, we use the Bridge to LAN option on the Network Interfaces inside the VM configuration (Applications :: Virtual Machines :: VM).

This can be done with three main steps:
  1. Creating a Bridge Interface;
  2. Mapping to the VM, using Bridge to LAN;
  3. Confirming the Interface on the VM.
In this document we'll focus only on GUI, but the steps can be done using the CLI as well.
The step 1 can be done on CLI by following another KB below.
The step 2 can be done via CLI using the virsh tool on the Shell.

Creating a Bridge Interface

Please, for more detailed information about creating interfaces, follow the below documents:

Above, we have basic configurations to creating a VLAN interface with switch ports, network connections and bridges.

Switch Ports

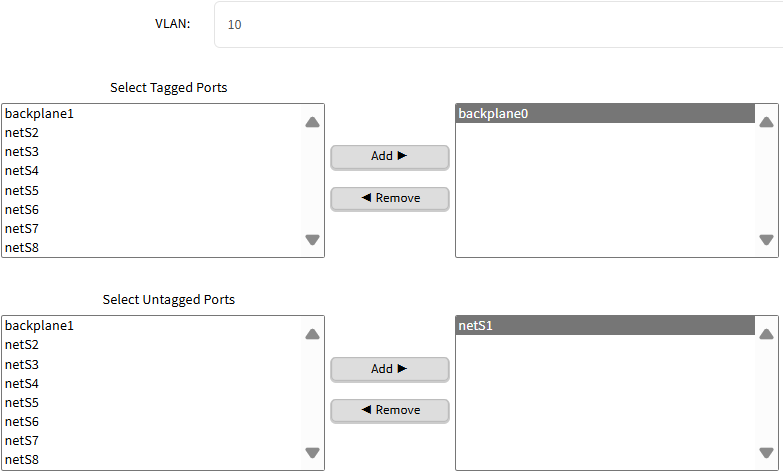

1. Create the configuration of the VLANs on Network :: Switch :: VLAN, with the ports that you want to send to the VM:

Note: one backplane needs to be Tagged, to make the VLAN interface on Network :: Connections.

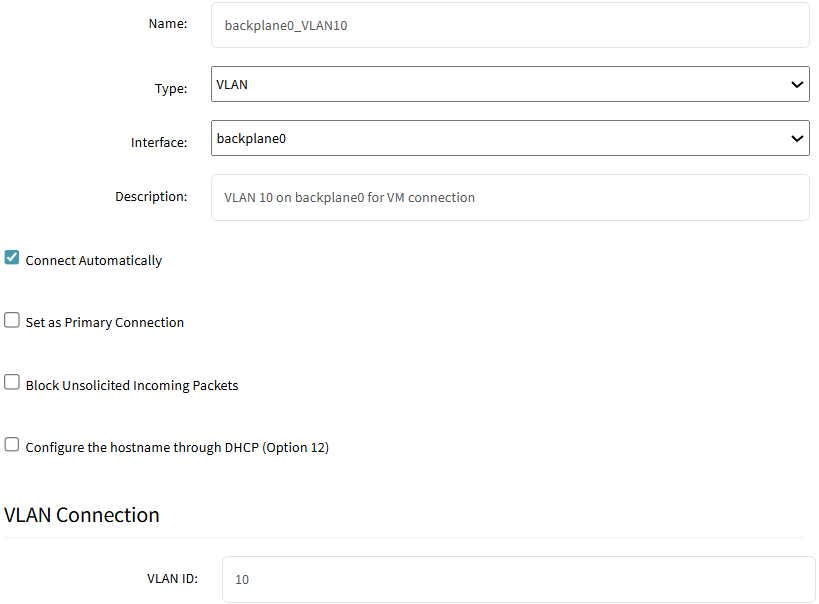

2. Create the VLAN interface on Network :: Connections, using the backplane as interface and typing the VLAN ID:

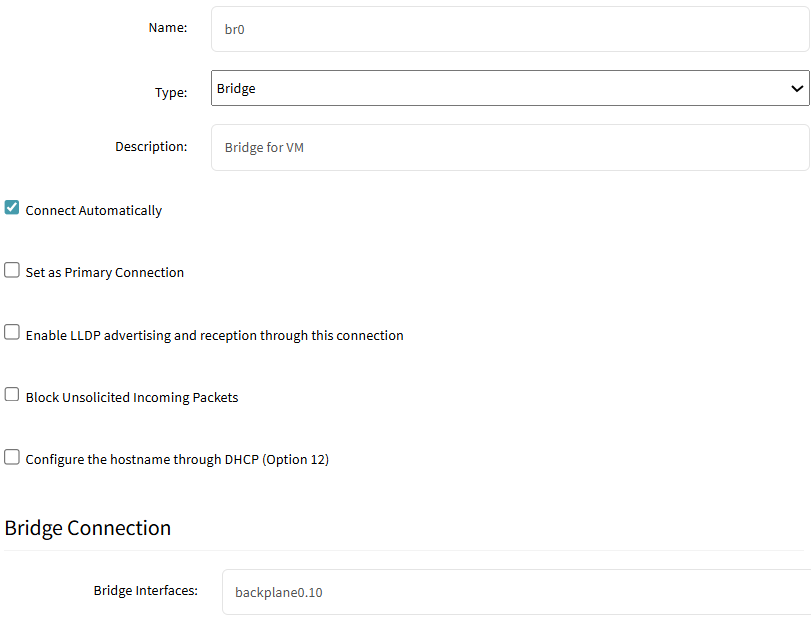

3. Create the bridge with the VLAN interface:


Network Interfaces

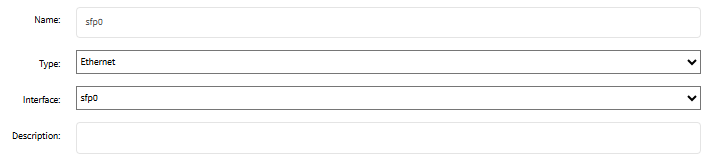

1. Create the Interface on Network :: Connections (If needed), selecting the physical interface that you want to sent to the VM:

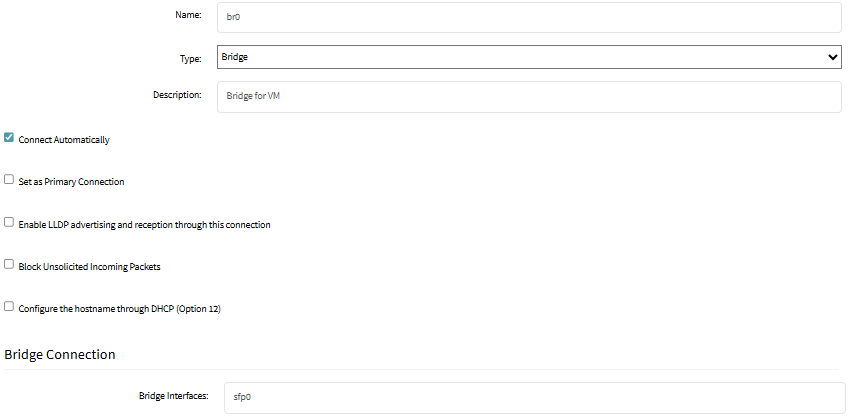

2. Create the Bridge with the Interface:

Note: the IP for the interface depends on how you want to use the interface. If it is just to disponibilize the interface, select no IPv4 and no IPv6. If the Nodegrid needs to reach the devices, it's needed to have an IP. This goes for the Bridge creation, either with VLAN or any connection.

Mapping Interfaces to VM using Bridge to LAN

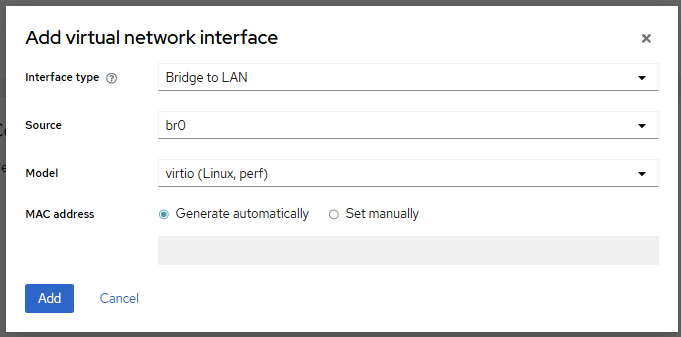

Go to Applications :: Virtual Machine :: VM and click on "Add network interface" on the "Network interfaces" tab. Select the "Bridge to LAN" type and the Source as the Bridge created earlier.
Model: depends on the environment: for Linux-based VM's, it is always best to use the virtIO for best performance. For other OS, can be used the e1000e PCI, if you are unable to install the virtIO on the VM.

Going to the Nodegrid console, you can do the same with virsh:
  1. shell sudo su -
  2. virsh attach-interface --domain VM_NAME \
  3.   --type network \
  4.   --source br0 \
  5.   --model virtio \
  6.   --config --live
The interface will instantly receive a MAC Address, enabling the VM to use that interface to send frames. For that, it's good to confirm that the VM is recognizing the interface.

Confirming the Interface on the VM

It depends on the OS that you are using, but the best approach is to match the MAC address on the GUI of the Nodegrid, with a command for seeing interfaces on the VM.

Note: example using FortiGate VM.

When we use a bridge with a DHCP, we can also see that the interface will receive an IP, if the port is configured as DHCP on the VM:
This also means that the interface is there to use.

Without the DHCP on the Nodegrid or anywhere connected on that bridge, it's needed to use a fixed IP for the interface.

Commands examples:
1. Linux: ifconfig or ip -br link
2. Windows: ipconfig /all (CMD) or Get-NetAdapter (Power Shell)
3. FortiGate: show system interface
4. PaloAlto: show interface all
