Local Virtual Machines VM's can't be accessed from ZPE Cloud - Workaround

Unable to launch Local VM from ZPE Cloud portal.

ZPE Cloud Portal Access:

1. Login into the ZPE cloud interface
2. Navigate to Applications :: Virtual Machines :: Virtual Machines VM - Workaround

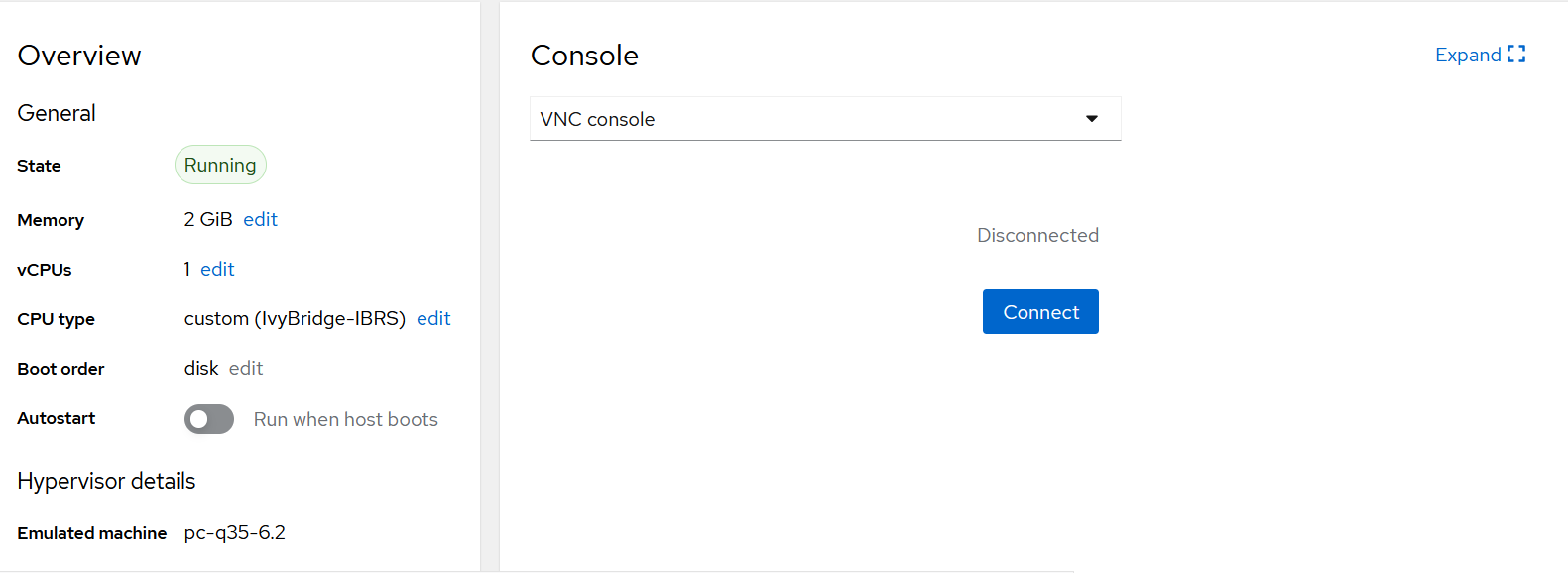

3. The VNC console will keep on spinning trying to connect.

Workaround on the local Nodegrid device:

1. Login into the ZPE cloud interface.

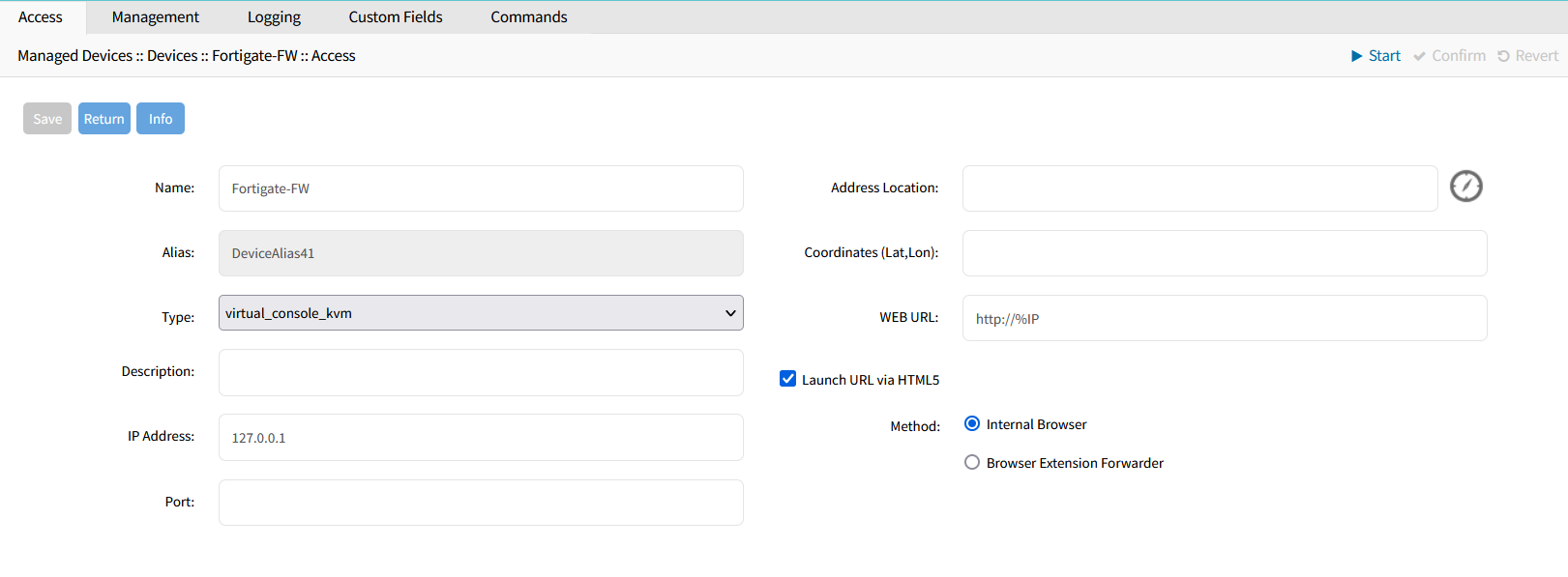

2. Navigate to -  Managed Devices

3. Navigate to - Add Name: (name needs to be identical to your virtual machine VM name)

4. Navigate to - Type = virtual_console_kvm

5. Navigate to - IP address= 127.0.0.1

6. WEB URL: Actual IP address of your virtual machine
7. Save


ZPE Cloud Portal Access:

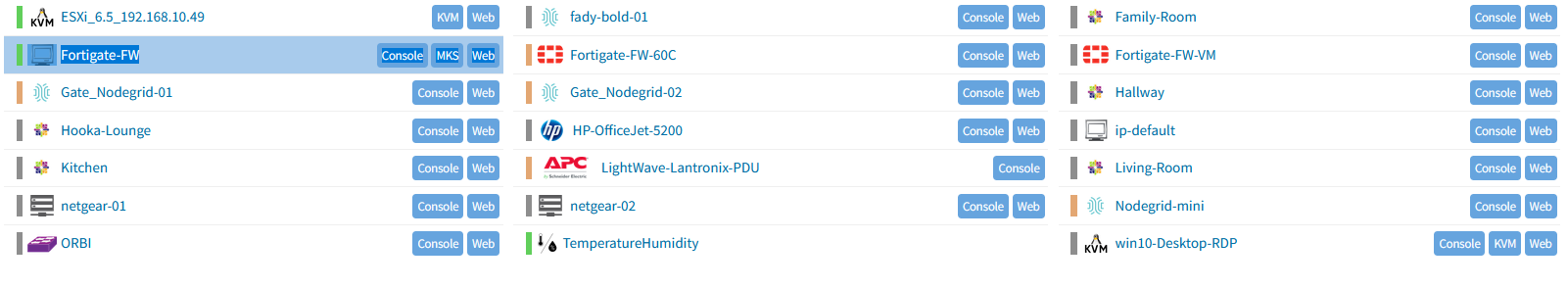

1. Navigate to Devices :: Your Device:: Connect Web :: : Access :: Managed Name Device (MKS)

2. Now you should be able to access your Virtual Machine VM.



Example:
