Nodegrid OS allows managing layer 2 traffic using VLANs. This document walks you through the process to create a VLAN, add a VLAN to a switch interface, and create a VLAN interface. The instructions are for both Nodegrid GUI and CLI.

Before we move forward, it’s important to note the terminology of a few items.
- Tagged Ports: Refers to ports that allow multiple VLAN traffic, a.k.a. Trunk Ports.
- Untagged Ports: Refers to a port that removes VLAN tags to outgoing frames and adds VLAN tags to incoming frames, allowing connected devices to communicate within a specific VLAN
- Backplane interface: Backplane settings control the switch interfaces directly exposed to the Nodegrid Platform.
- netSX Ports: Refers to the switch ports of the device.

How to create a VLAN interface in the OS

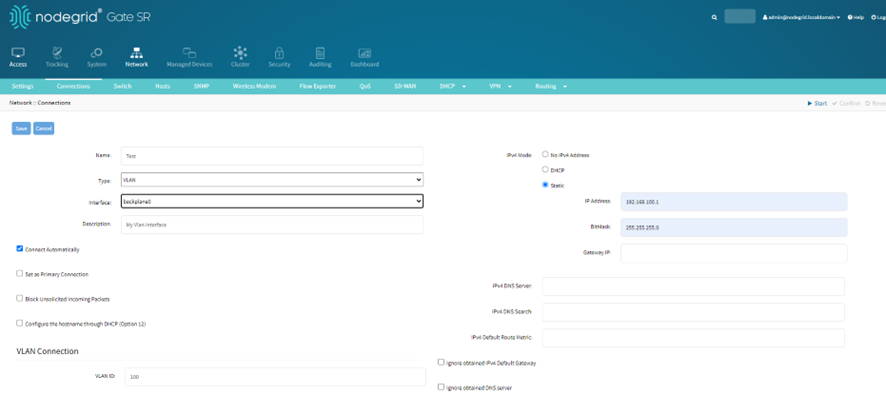

Navigate to Network :: Connections. Click Add.
Type the interface name.
Select VLAN in Type field.
Select the Nodegrid interface, in this example, the interface backplane0.

How to Create a VLAN from GUI

If the backplane port is tagged, a VLAN interface needs to be created in the OS

How to set Port VLAN ID

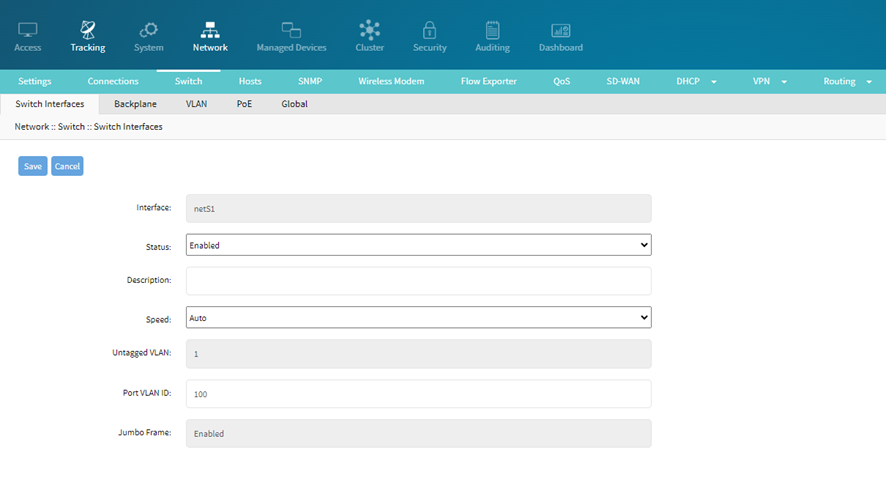

Navigate to Network :: Switch :: Switch Interfaces. Select the interface, click on the interface name.
Set the Port VLAN ID

Navigate to /settings/switch_vlan usingcd /settings/switch_vlan
Type Add, hit enter. Use the set option to define the parameters.

During "set", type <Tab><Tab> to view the options, type Ctrl^ to populate with the saved values

Available options

tagged_ports=

untagged_ports=

vlan=

Sample configuration
add
set vlan=100
set tagged_ports= netS1
set untagged_ports=netS2,netS3
commit

How to create a VLAN interface in the OS using CLI

Navigate to /settings/network_connections using cd /settings/network_connections
Use add command to start the interface creation process.

Sample configuration
set name=Test
set type=vlan
set ipv4_mode=static
set ipv4_address=192.168.0.2
set ipv4_bitmask=255.255.255.0
set ethernet_interface=backplane0
set vlan_id=100
commit

How to set the Port VLAN ID using the CLI

Navigate to /settings/switch_interfaces using cd /settings/switch_interfaces

Select the interface you want to make changes. You can use the command ls to list the available interfaces. In this example, we’ll access netS1 using cd netS1. You can use the show command to see the current settings.

Use the command set port_vlan_id=<VLAN>, for example, port_vlan_id=100. Run commit to save the changes.
Note: Make sure the interface status is set as enabled.
