NSR and NSC DC supply ring terminal sizes

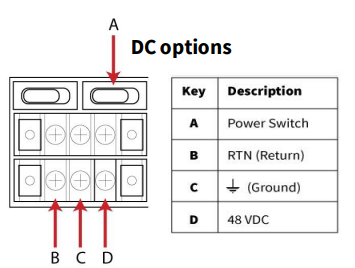

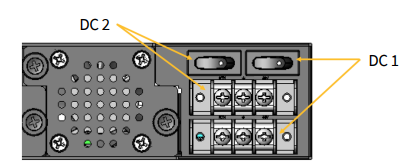

The NSR and NSC are designed with Dual DC supply and the connections for the device with DC supply are as shown in the image

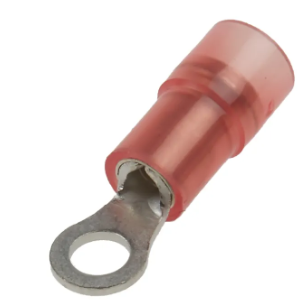

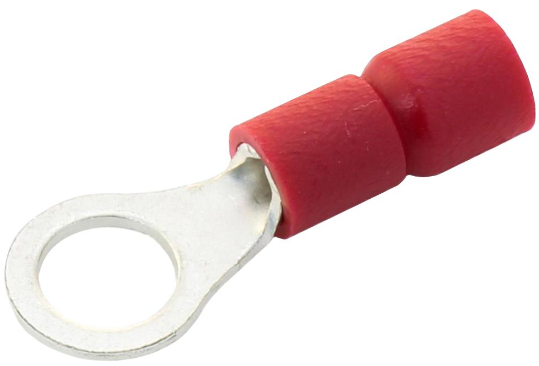

The terminals can be connected with ring terminals of size M3#4 or M4#8 which is the same size of the screws
