Not able to Web a VM with Default Network

Not able to Web a VM with Default Network

Not able to Web a VM with Default Network

When you enable the KVM/QEMU, virsh install the following rules:
Chain LIBVIRT_FWI (1 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 ACCEPT     all  --  *      virbr0  0.0.0.0/0            192.168.122.0/24     ctstate RELATED,ESTABLISHED
    0     0 REJECT     all  --  *      virbr0  0.0.0.0/0            0.0.0.0/0            reject-with icmp-port-unreachable

Chain LIBVIRT_FWO (1 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 ACCEPT     all  --  virbr0 *       192.168.122.0/24     0.0.0.0/0
    0     0 REJECT     all  --  virbr0 *       0.0.0.0/0            0.0.0.0/0            reject-with icmp-port-unreachable

Chain LIBVIRT_FWX (1 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 ACCEPT     all  --  virbr0 virbr0  0.0.0.0/0            0.0.0.0/0

Which will block the FW packets of the VMs.

So, after creating a VM with the Default Network, you need either:
Add a rule on iptable fw rules for the virbr0
shell sudo su -
iptables -I LIBVIRT_FWI 1 -d <VM_IP> -p tcp -m multiport --dports 443 -m conntrack --ctstate NEW -j ACCEPT

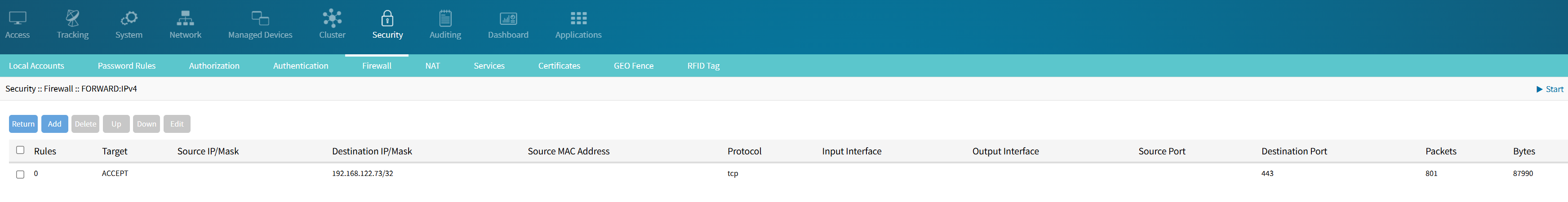

Or apply on the Nodegrid forward table:
