NodeGrid TxxS air flow direction

NodeGrid TxxS air flow direction

NodeGrid Serial Console S series

The NodeGrid TxxS has 2 cooling fans to dissipate heat from the unit.
There are 2 air flow configurations:

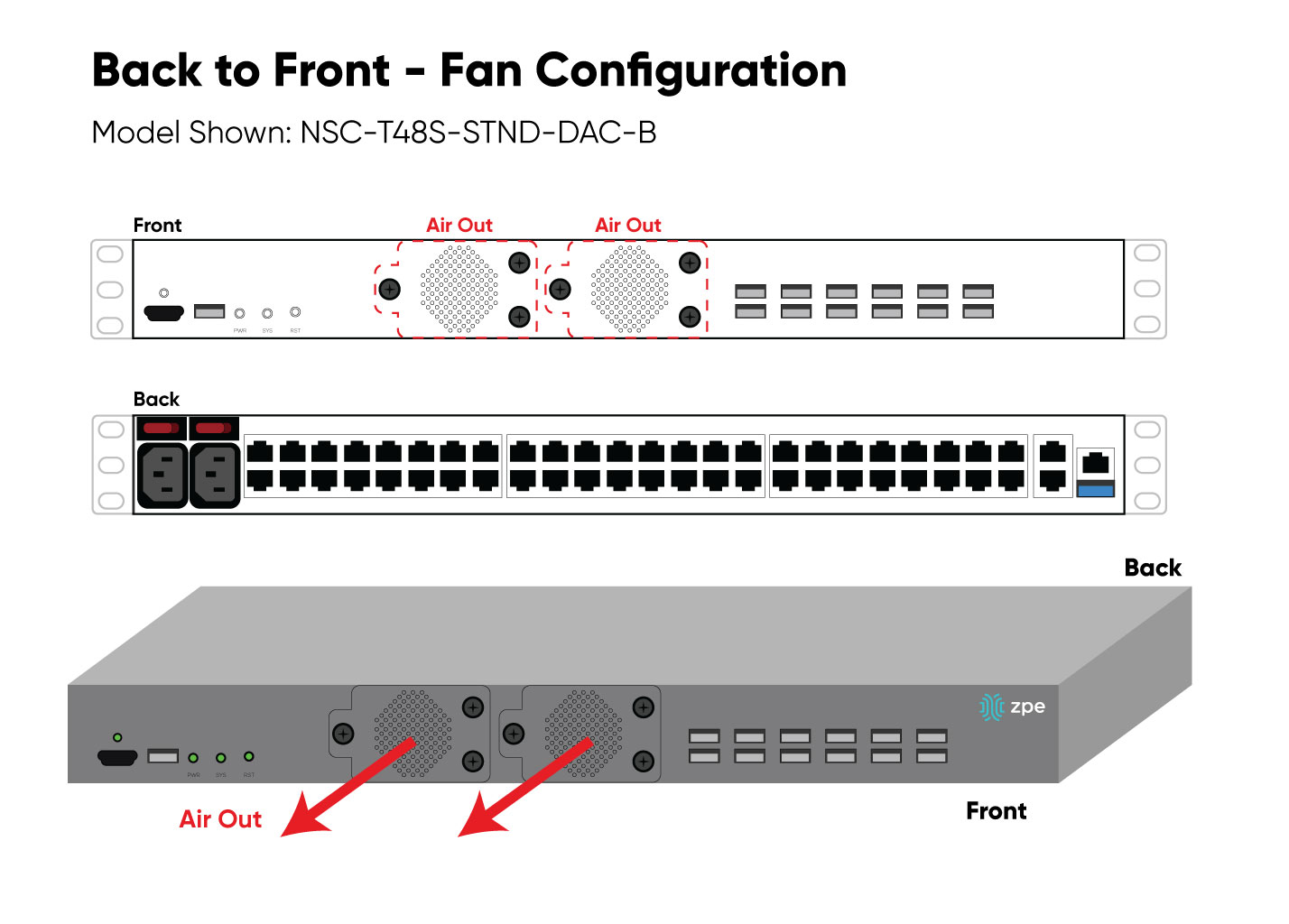

  • -B : Back to Front - meaning Air Out (air exhaust)
  • -F : Front to Back - meaning Air In (air intake)
The fans will spin faster or slower according to the CPUs temperature.

See Diagrams below for visualization:


SmallBestOriginalRemove
SmallBestOriginalRemove
SmallBestOriginalRemove
