How To: Locating IMEI on Nodegrid
You have a couple of ways to get that data:
- WebUI

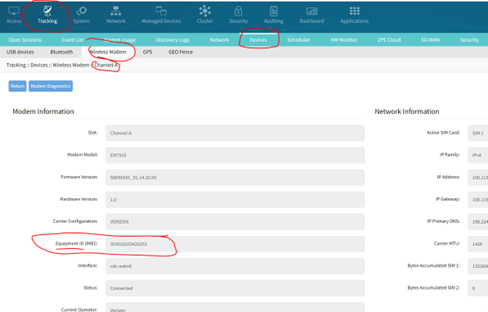

- Go to “Tracking->Devices->Wireless Modem” then click hyperlink for modem (mine is Channel-A)
- CLI
- Log into console of Nodegrid
- Run “shell sudo su –“ command to drop to linux shell

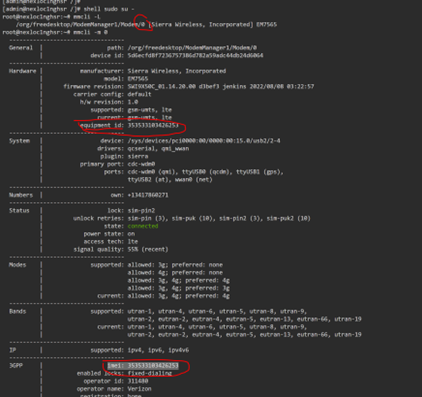

- Run “mmcli -L” command to see which modem number entry (in my case it’s ‘0’)
- Run “mmcli -m 0” to list modem details (equipment ID=IMEI)
