How to configure High Availability non Nodegrid devices

How to configure High Availability non Nodegrid devices

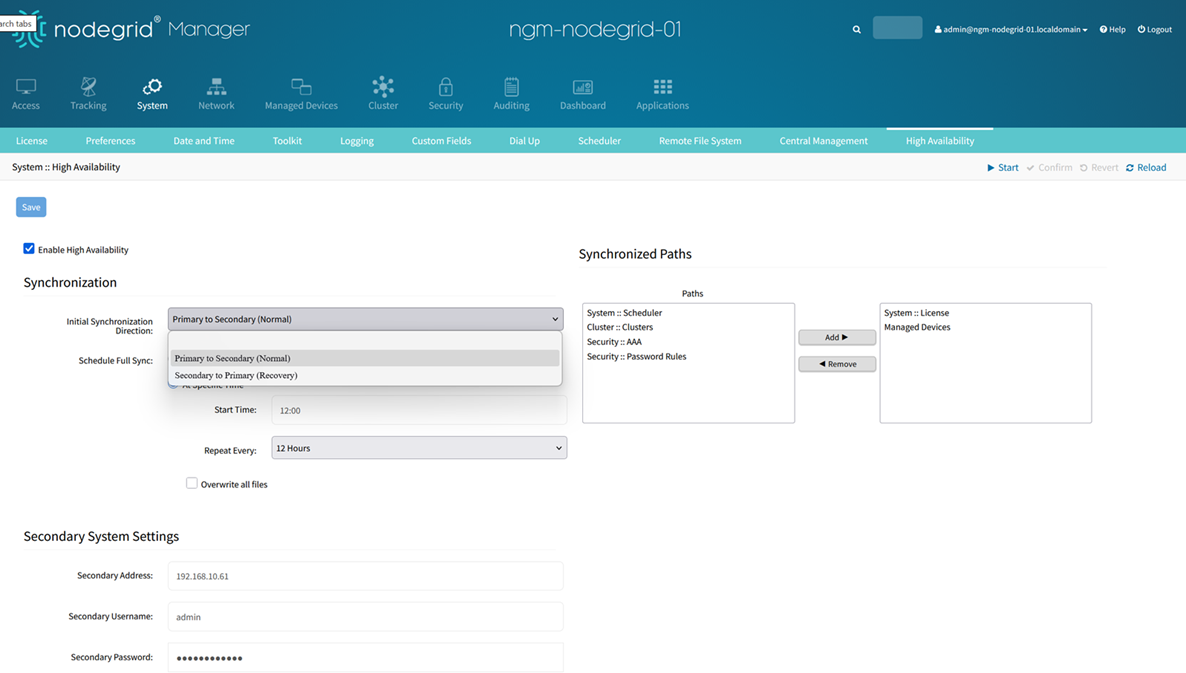

- Under > System> High Availability> you need to enable High Availability

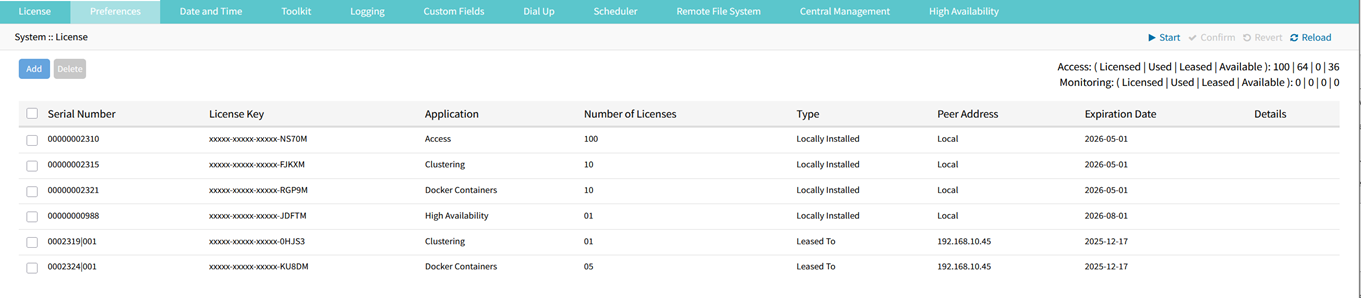

HA license is needed for High Availability

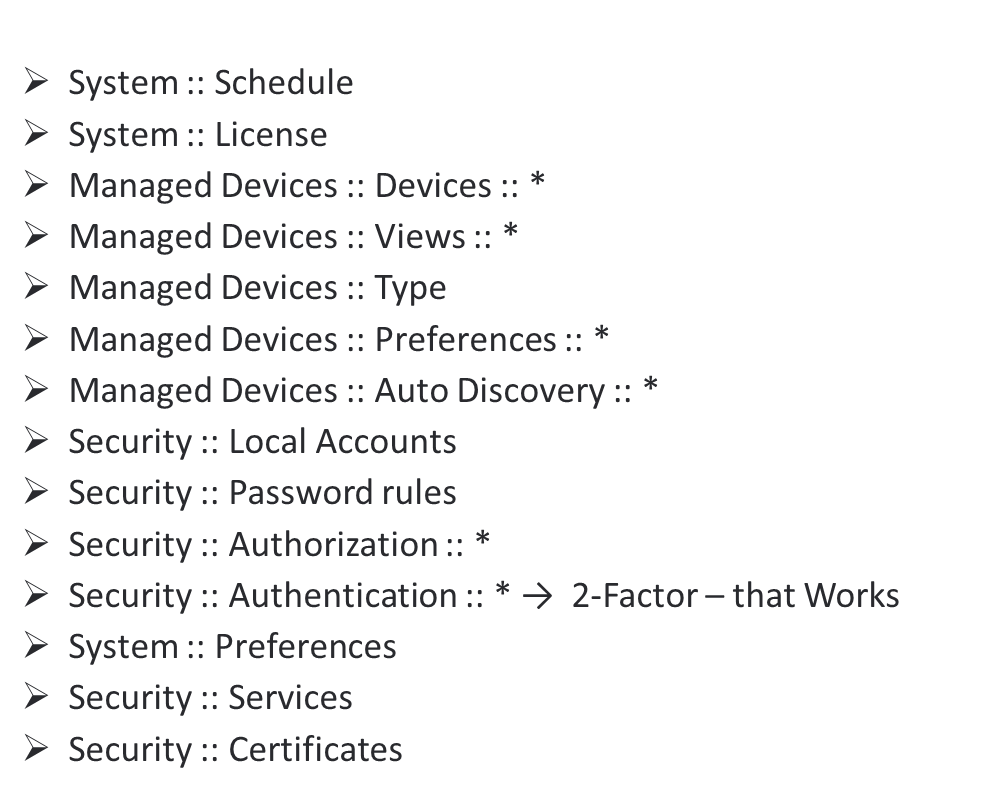

Enable Synchronized Paths, The HA feature currently synchronizes key configuration components, including the Password Rules Licenses, Managed Devices, and AAA




Synchronized Paths Enabled to be syned


HA Secondary Configuration

 Under > System> High Availability> High Availability will be enabled.


High Availability will be enabled.  Secondary will be non-active role

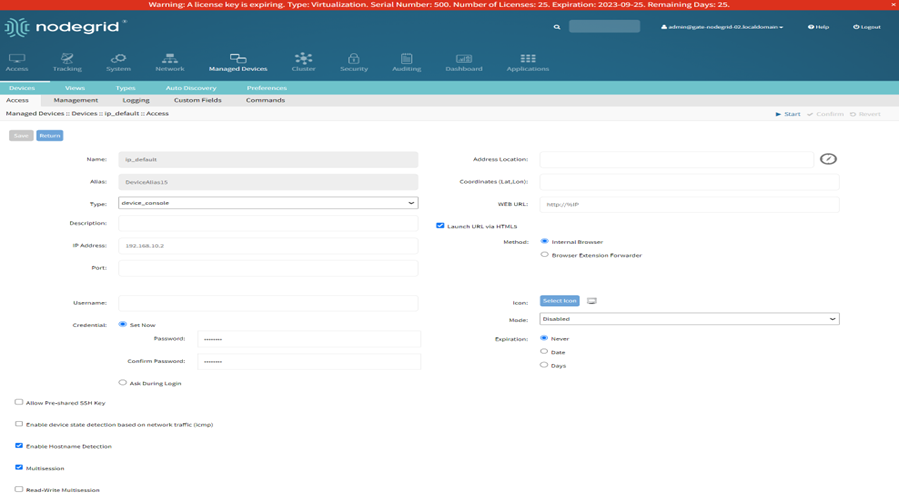

 Under > Access  > Managed Devices

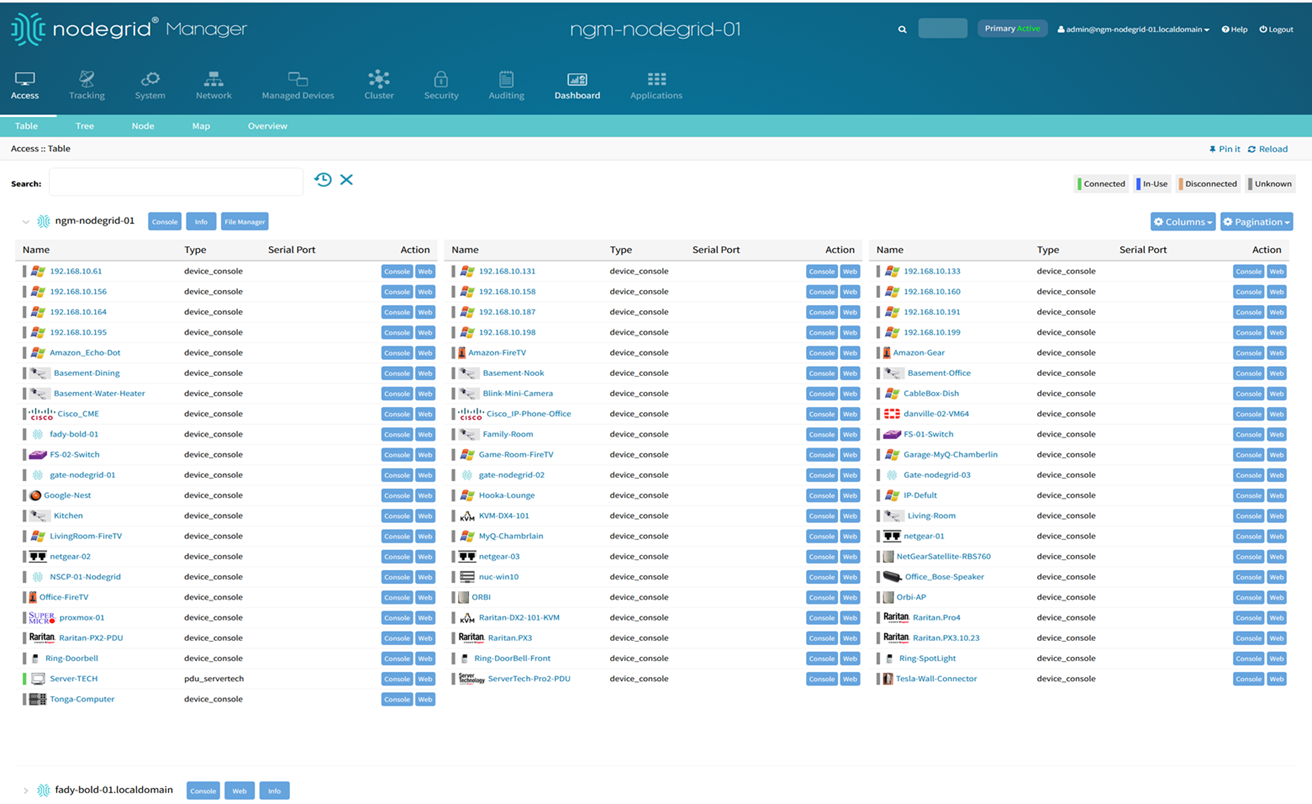

All Managed devices & KVM Ports will be replicated between the primary & secondary pairs

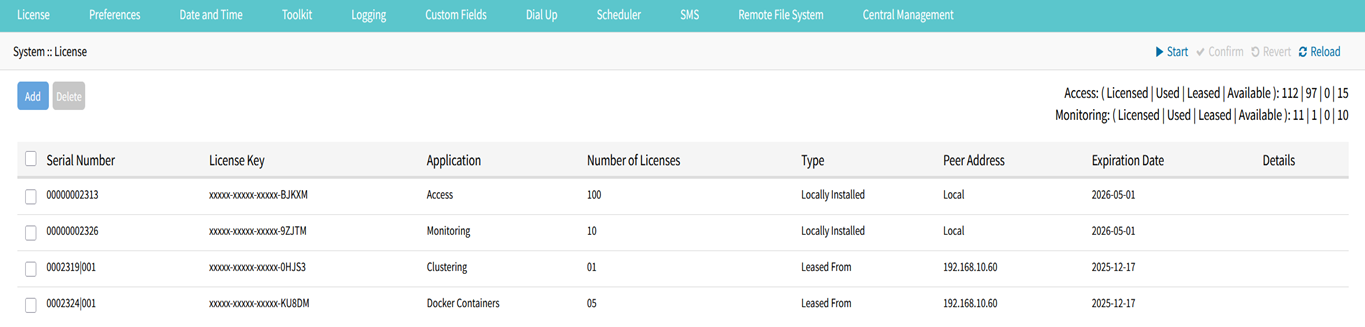

License Keys will show on the secondary HA pair

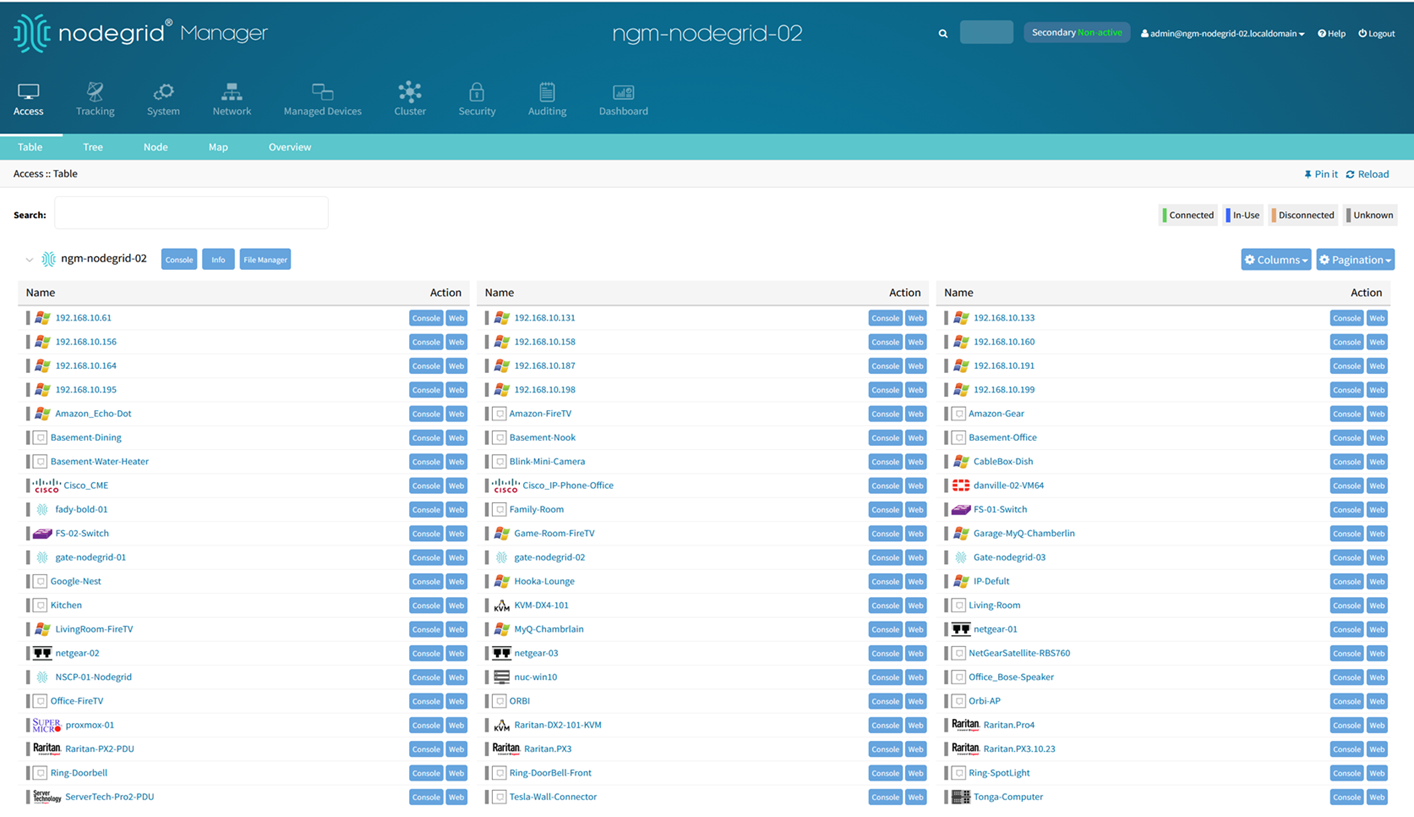

All Managed devices & KVM Ports will be replicated between the primary & secondary pairs




 Under > Access  > Managed Devices

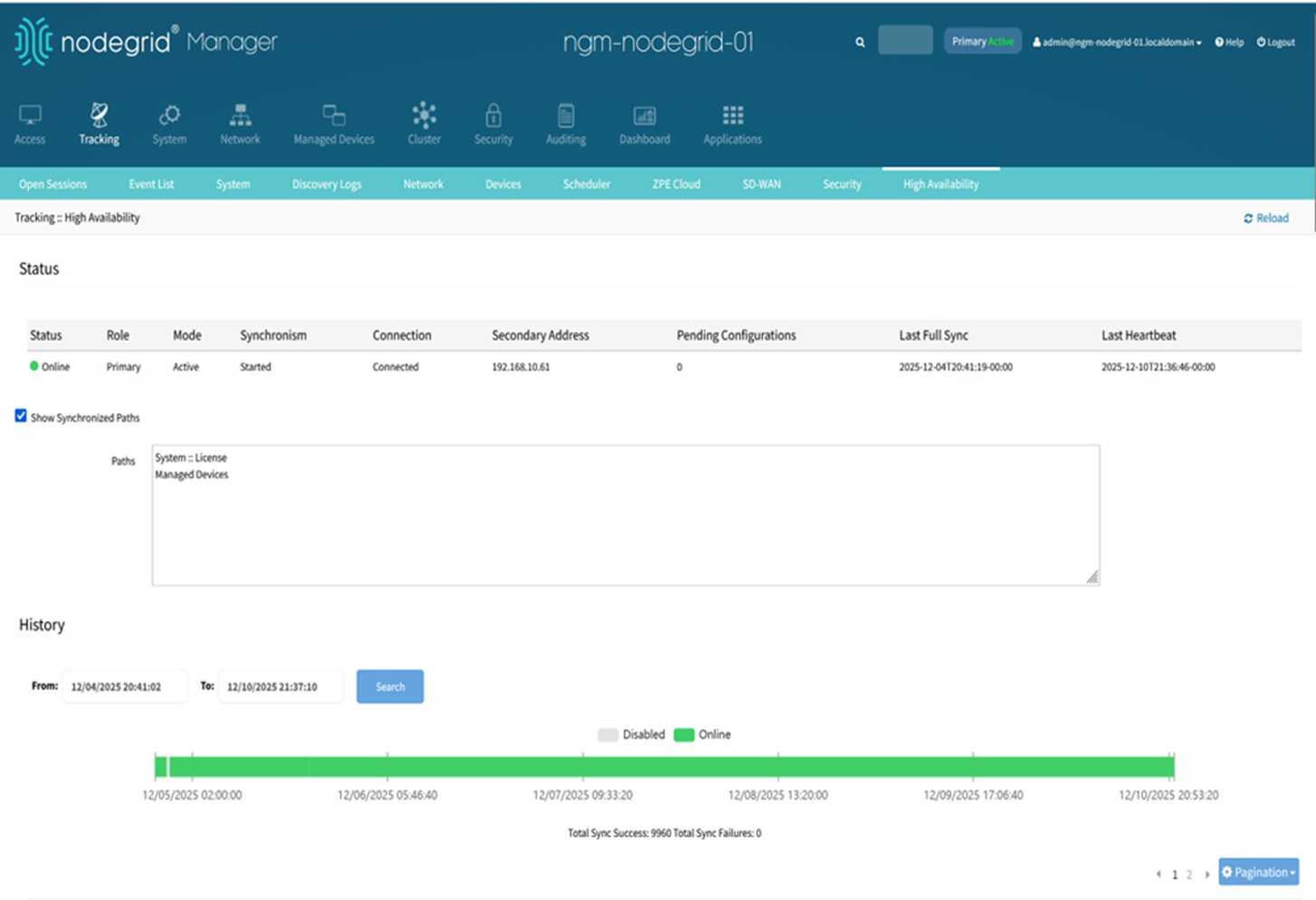

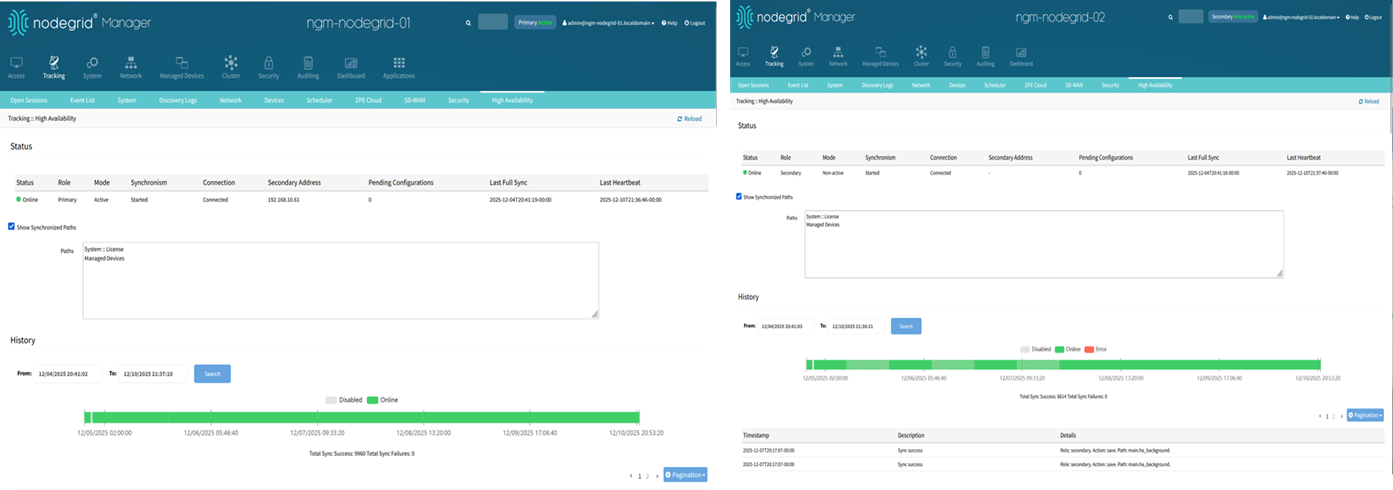

Under > Tracking > High Availability>
