Version 0.1 (08 May 2018)

Overview

NodeGrid supports the authentication and authorization of users through different authentication providers, like LDAP.

This guide will look at the different authentication options which are available with LDAP or AD Authentication

LDAP or Active Directory Authorization Provider

Nodegrid can be setup to authenticate users with LDAP or Active Directory servers. Nodegrid is using the LDAP protocol to do this. In order to setup a working authentication provider the following information are required.

Field
Values
Required
Comment
Status
Enabled or Disabled
Yes
Default Value is Enabled. This means the provider will be used to authenticate users
Fallback if denied access
Enabled or Disabled
Yes
Default is Disabled. In this state if an authentication fails no other provider will be used to authenticate the user. It is recommended to Enable this feature in case the provider is  not available
Remote Sever
FQDN or IP of LDAP server or domain
Yes
Nodegrid supports resolution of Active Directory Servers through DNS requests. This means that either specific Active Directory Servers can be specified or a valid Active Directory Domain. In case of the later the system will contact the closest Server based on the DNS results.
Base
Base DN
Yes
This field can contain the Root DN or a sublevel DN. This DN marks the highest point which will be used to search for users or groups
Secure
On, Off or Start_TLS
Yes
Default is off, all traffic between the Nodegrid and the LDAP server will be send unencrypted. Recommended On. Note this feature needs to be supported by the Server
Database Username
Search User Name
Optional
Full Qualified username, which can be used to search through the directory. Only required if the LDAP server requires authentication for browsing of the directory
Database Password and Confirm Password
Password for the search user
Optional
Only required if the LDAP server requires authentication for browsing of the directory
Login Attribute
Field which identifies the username
Required

Group Attribute
Field which identifies the group names
Required

Search Filter
Search Filter following the LDAP implementation
Optional


LDAP Servers

The LDAP protocol is an open standard and as such many commercial as well as open source products are available which implement this protocol. Due to this, there is a large variety of implementations, most of these will be similar but there are no clear standards for field names for example. All LDAP example in this document are based on an OpenLDAP implementation. One of the largest and widely used implementations of LDAP is Microsoft’s Active Directory. Sections which discuss Active Directory settings are specific to this implementation.

Microsoft Active Directory

Active Directory from Microsoft is a commercial product which is widely used in many companies. It allows companies to build up a very complex authentication provider implementation which reflects the internal organization of the company. An implementation can range from a single location/department to multi-site and global implementations. Due to this Active Directory servers can be grouped in Domains, which can be part of Tree’s which can be part of a Forest of different domains and Trees.

In order to find users in this structure a system can either interrogate a specific domain to which the user belongs or can interrogate the global catalogue, which lists all users and groups in the forest. It is important to note that even so the global catalogue list all the users and groups only the specific domains can successfully authenticate a specific user.

Nodegrid supports the interrogation of domain specific active directory servers as well as of global catalogue servers. Authentication of users is only possible against specific domains either by defining a specific Active Directory server or a specific domain in the configuration. In case multiple domains are required to be used for authentication, Nodegrid supports the configuration of multiple authentication providers. These can be arranged based preferred authentication provider list. The Nodegrid will then try to successfully authenticate the user against the various defined domains.



Value Overview and Samples

Status

The Status field enabled or disables the Authentication provider. The Provider will only be used in case the provider is enabled.

Fallback if Denied Access

The Fallback option allows user authentication with other providers in case the current provider is not available due to a network outage or the user authentication was rejected. This could be due to a valid authentication failure of the user or due to duplication of the user name in case multiple provider are available.

It is recommended to enable this option, as otherwise in case the provider is not available no authentication is possible.

Remote Server

This field is required. The IP address or the FQDN of the LDAP server are required. Only one IP or FQDN can be provided.

In order to provide failover options, multiple Providers can be created.

IPv4 Address Example:


IPv6 Address Example:


FQDN Example:

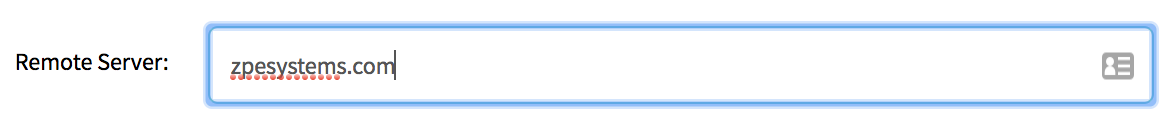

FQDN for an Active Directory Domain Example:


Base

The Base DN notes the highest point in the search structure for the authentication provider. Only elements like users and groups which are below this point will be searched.

The Base DN needs to be provided as a Distinguished Name. It has to be as minimum equal to the Root DN but it can be as well a sub DN

Base DN = Root DN Example:


Base DN = Sub DN Example:


Only users and Groups which are in or below the Marketing OU will be searched and authenticated

Secure

This field identifies the protocol which will be used to communicate with the Server. The default value of OFF is the normal LDAP protocol (TCP/UDP 389). This is an unsecured protocol and details like username and passwords are send in clear text to the authentication provider.

It is recommended to use the option ON this will use the SSL LDAP protocol TCP636, which will encrypt the traffic and ensures that username and passwords are not send in clear text. If required the TLS option is available as well.

NOTE: Support for SSL and TLS needs to be enabled on the Server. Specifically, AD servers do not support SSL or TSL by default.
Active Directory Kerberos is not supported at this point.

On Example:


Off Example:


Start_TLS Example:


Database Username

This field is required in case the LDAP server requires authentication. This is the default setting for Active Directory servers for example.

The user name has to be provided as a Distinguished name. The search user can be outside of the provided base dn, but has to be a valid users. The base dn only applies to all search requests but not to the authorization of the search user.

NOTE: The scope of the user within the structure will have an impact on which users and groups can be searched. Ensure that the user is allowed to see all required groups and users in the LDAP or AD structure.

Example:


The field cn contains in most LDAP implementation the username. Different fields can be used as needed to identify the username. For Active Directory implementations, the cn field contains the username.

Login Attribute:

The Login Attribute is used to identify the field which contains the value with which the user identifies itself. This is typically the username. The value should identify user name values. In most LDAP implementations, this is by default the field cn (Common Name)

For Active Directory two values exist which can be used. It is a valid setup in Active Directory that both fields do not contain the same values. In case a login is not possible with a valid username it could be that this value is only maintained in one of the 2 fields within Active Directory.

Field
LDAP Attribute
LDAP User logon
cn
AD User logon name
cn
AD User logon name (pre-Windows 2000)
sAMAccountName

NOTE: Login through the Active Directory attribute userPrincipalName (username@domain.com) is currently not support.

LDAP Server Setup Example:


Login Attribute for a LDAP Server Example:


Login Attribute for Active Directory pre-Windows2000 User Name Example:


Login Attribute for Active Directory Windows User Name Example:


Member Attribute

The Member Attribute is used to identify which users are part of a group. The value should identify the field which contains the desired user name values. In LDAP servers, this is typically the memberUID field for Active Directory memberOf

Field
LDAP Attribute
LDAP Member Attribute
memberUID
AD Member Attribute
memberOf

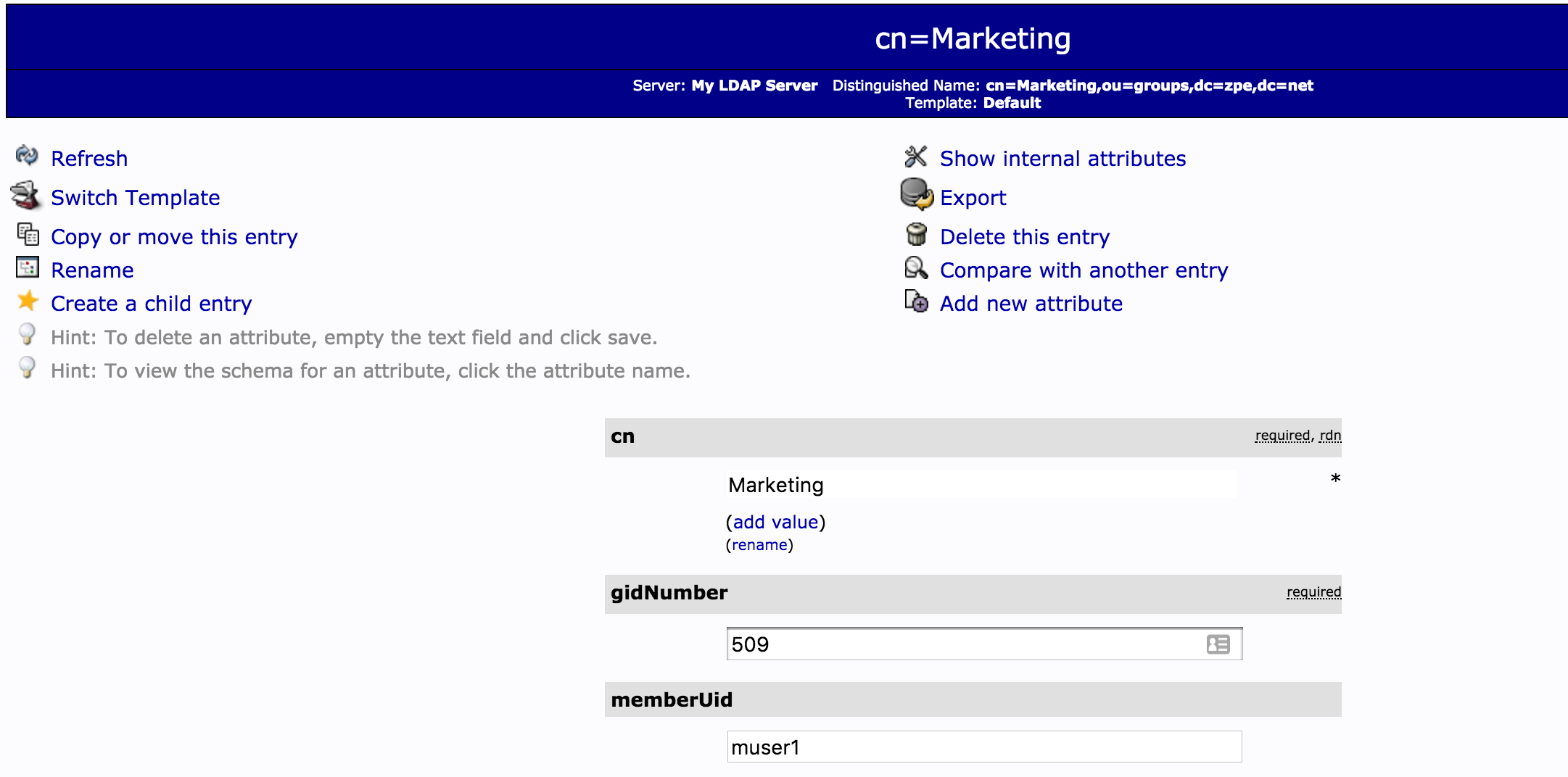

LDAP Server Setup Example:


Member Attribute for a LDAP Server Example:


Member Attribute for a Active Directory Server Example:


Search Filter

The Search Filter provides an option to filter the search results based on the official LDAP search filter option. For example, could users be filtered out which have only a specific manager. The filter is applied after the base DN and search user’s limitations are applied



Configuration Examples

Login Attribute for a LDAP Server Example:


Login Attribute for Active Directory pre-Windows2000 User Name Example:


Login Attribute for Active Directory Windows User Name Example:


Setup of an LDAP Provider through the WebUI

  1. Login to the WebUI with an Administrator account
  2. Navigate to Security :: Authentication
  3. Click on the Add button
  4. Provide the following values (these are example values)

    Field
    Value
    Comment
    Method
    LDAP or AD

    Status
    Enabled

    Fallback if denied access
    Active

    Remote Sever
    IP or FQDN of the LDAP Server

    Base
    dc=zpe,dc=net

    Secure
    OFF
    If a secure connection is supported by the server then it should be used
    Database Username
    cn=admin, dc=zpe,dc=net
    User will be used to search through the LDAP. This might not be required if anonymous browsing is enabled.
    Database Password and Confirm Password
    password

    Login Attribute
    cn

    Group Attribute
    memberUID

    Search Filter
    Not required

  5. Example
  6. Press 'Save' to save the authentication provider

Setup of an LDAP Provider through the CLI

  1. ssh to the Nodegrid with and administrator account
  2. Navigate to /settings/authentication/servers
  3. Start adding a new authentication provider with the command add
  4. [admin@nodegrid servers]# add
    [admin@nodegrid {servers}]#
  5. Provide the following values (these are example values)
  6. Field
    Value
    Comment
    method
    LDAP or AD

    remote_server
    Enabled

    fallback_if_denied_access
    Active

    remote_server
    IP or FQDN of the LDAP Server

    ldap_ad_base
    dc=zpe,dc=net

    ldap_ad_secure
    OFF
    If a secure connection is supported by the server then it should be used
    ldap_ad_database_username
    cn=admin, dc=zpe,dc=net
    User will be used to search through the LDAP. This might not be required if anonymous browsing is enabled.
    ldap_ad_database_password
    password

    ldap_ad_login_attribute
    cn

    ldap_ad_group_attribute
    memberUID

    Search Filter
    Not required

  7. These values can be provided as single values or as one set command.
    [admin@nodegrid {servers}]# set method=ldap_or_ad
    [admin@nodegrid {servers}]# set remote_server=192.168.1.1
    [admin@nodegrid {servers}]# set fallback_if_denied_access=yes
    [admin@nodegrid {servers}]# set ldap_ad_secure=off
    [admin@nodegrid {servers}]# set ldap_ad_base=dc=zpe,dc=net
    [admin@nodegrid {servers}]# set ldap_ad_database_username=cn=admin,dc=zpe,dc=net
     [admin@nodegrid {servers}]# set ldap_ad_database_password=password
    [admin@nodegrid {servers}]# set ldap_ad_login_attribute=cn
    [admin@nodegrid {servers}]# set ldap_ad_group_attribute=memeberUID
    [admin@nodegrid {servers}]# commit
  8. Commit the changes.

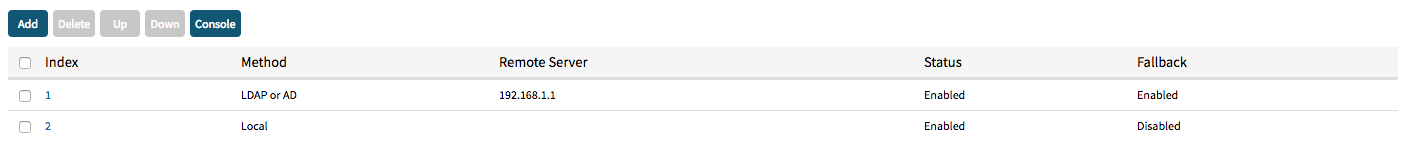

  9. To review the newly created authentication provider the command show or show_settings.
    [admin@nodegrid servers]# show
      index  method      remote server  status   fallback
      =====  ==========  =============  =======  ========
      1      ldap or ad  192.168.1.1    enabled  enabled
      2      local                      enabled  disabled

    Try ls command instead...
    [admin@nodegrid servers]# show_settings
    /settings/authentication/servers/1 method=ldap_or_ad
    /settings/authentication/servers/1 status=enabled
    /settings/authentication/servers/1 fallback_if_denied_access=yes
    /settings/authentication/servers/1 remote_server=192.168.1.1
    /settings/authentication/servers/1 ldap_ad_base=dc=zpe,dc=net
    /settings/authentication/servers/1 ldap_ad_secure=off
    /settings/authentication/servers/1 ldap_ad_database_username=cn=admin,dc=zpe,dc=net
    /settings/authentication/servers/1 ldap_ad_database_password=********
    /settings/authentication/servers/1 ldap_ad_login_attribute=cn
    /settings/authentication/servers/1 ldap_ad_group_attribute=memeberUID

Setup of an Active Directory Provider through the WebUI

  1. Login to the WebUI with an Administrator account
  2. Navigate to Security :: Authentication
  3. Click on the Add button
  4. Provide the following values (these are example values)
  5. Field
    Value
    Comment

    Method

    LDAP or AD



    Status

    Enabled



    Fallback if denied access

    Active



    Remote Sever

    IP or FQDN of the AD Server



    Base

    dc=zpesystems,dc=com



    Secure

    OFF

    If a secure connection is supported by the server then it should be used

    Database Username

    cn=Administrator,cn=Users,dc=zpesystems,dc=com

    User which will be used to search the Active Directory. This value should reflect the Distingueshed Name or the userPrincipalName

    Database Password and Confirm Password

    password



    Login Attribute

    sAMAccountName



    Group Attribute

    memberOf



    Search Filter

    Not required



  6. Example
  7. Press "Save" to save the authentication provider

Setup of an Active Directory Provider through the CLI

  1. ssh to the Nodegride with and administrator account
  2. Navigate to /settings/authentication/servers
  3. Start adding a new authentication provider with the command add

    [admin@nodegrid servers]# add
    [admin@nodegrid {servers}]#
  4. Provide the following values (these are example values)

    Field
    Value
    Comment
    method
    ldap_or_add

    remote_server
    192.168.1.1

    fallback_if_denied_access
    yes

    ldap_ad_base
    dc=zpesystems,dc=com

    ldap_ad_secure
    on
    If a secure connection is supported by the server then it should be used
    ldap_ad_database_username
    cn=Administrator,cn=Users,dc=zpesystems,dc=com
    User which will be used to search the Active Directory. This value should reflect the Distingueshed Name
    ldap_ad_database_password
    password

    ldap_ad_login_attribute
    sAMAccountName
    Correct values are either sAMAccountName or cn
    ldap_ad_group_attribute
    memberOf

  5. These values can be provided as single values or as one set command

    [admin@nodegrid {servers}]# set method=ldap_or_ad
    [admin@nodegrid {servers}]# set remote_server=192.168.1.1
    [admin@nodegrid {servers}]# set fallback_if_denied_access=yes
    [admin@nodegrid {servers}]# set ldap_ad_secure=off
    [admin@nodegrid {servers}]# set ldap_ad_base=dc=zpesystems,dc=com
    [admin@nodegrid {servers}]# set ldap_ad_database_username=cn=Administrator,cn=Users,dc=zpesystems,dc=com
     [admin@nodegrid {servers}]# set ldap_ad_database_password=password
    [admin@nodegrid {servers}]# set ldap_ad_login_attribute= sAMAccountName
    [admin@nodegrid {servers}]# set ldap_ad_group_attribute=memeberOf
    [admin@nodegrid {servers}]# commit
  6. Commit the changes
  7. To review the newly created authentication provider the command show or show_settings

    [admin@nodegrid servers]# show
      index  method      remote server  status   fallback
      =====  ==========  =============  =======  ========
      1      ldap or ad  192.168.1.1    enabled  enabled
      2      local                      enabled  disabled

    Try ls command instead...
    [admin@nodegrid servers]# show_settings
    /settings/authentication/servers/1 method=ldap_or_ad
    /settings/authentication/servers/1 status=enabled
    /settings/authentication/servers/1 fallback_if_denied_access=yes
    /settings/authentication/servers/1 remote_server=192.168.1.1
    /settings/authentication/servers/1 ldap_ad_base= dc=zpesystems,dc=com
    /settings/authentication/servers/1 ldap_ad_secure=off
    /settings/authentication/servers/1 ldap_ad_database_username=cn=Administrator,cn=Users,dc=zpesystems,dc=
    /settings/authentication/servers/1 ldap_ad_database_password=********
    /settings/authentication/servers/1 ldap_ad_login_attribute= sAMAccountName
    /settings/authentication/servers/1 ldap_ad_group_attribute= memberOf

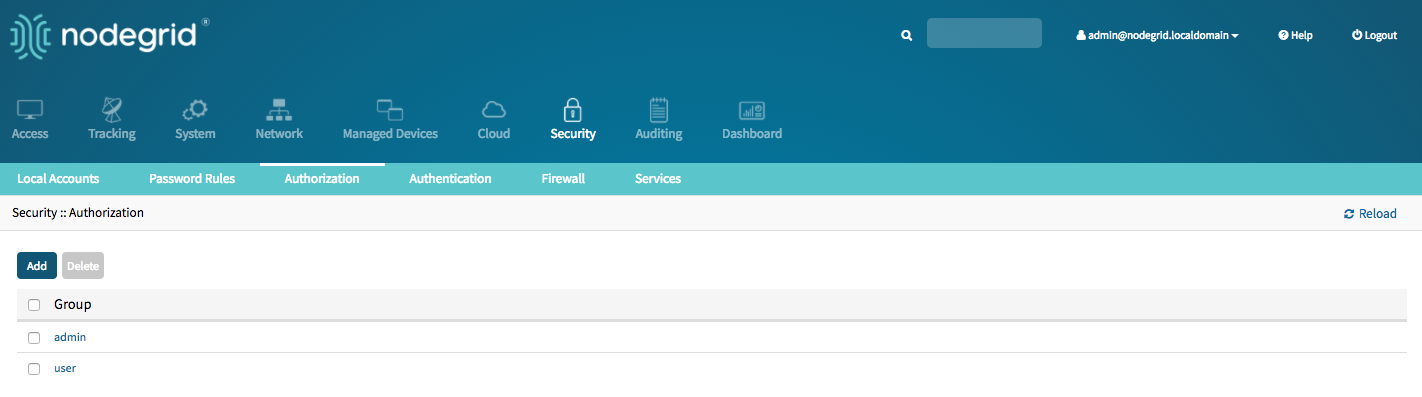

Setting Up User Permissions

After the authentication provider was added to the system, users will be able to be authenticated by the Nodegrid, but users are not yet authorized to access any resources on the Nodegrid.

For this remote user groups have to be assigned to appropriate internal groups. For this first create appropriate internal groups and assign the proper rights to them. After this was completed and verified you can assign remote groups to the internal Groups.

At this point end users can login to the Nodegrid and they will get the appropriate access to the system.



Individual users cannot be authorized by the Nodegrid, only user groups can be associated to internal groups.



Assign Remote Groups to Internal Groups WebUI

  1. Login the Nodegrid Manager with an admin account
  2. Navigate to Security :: Authorization
  3. Click on the Group to which the Remote Group should be associated with
  4. Go to Remote Groups
  5. Enter the group name and click on Save
  6. Multiple group names can be entered by separating them through a comma

Assign Remote Groups to Internal Groups CLI

  1. ssh to the Nodegrid with an admin account
  2. navigate to /settings/authorization/
  3. navigate from here into the remote_group section of the group to which the remote group should be associated with
  4. use the set command to change the current setting and to associate the remote group
  5. multiple groups can be assigned by separating the group names with a comma
  6. commit the change

Example:

[admin@nodegrid /]# cd /settings/authorization/
[admin@nodegrid authorization]# show
  name
  =====
  admin
  user

Try ls command instead...
[admin@nodegrid authorization]# cd admin
[admin@nodegrid admin]# cd ..
[admin@nodegrid authorization]# cd admin/remote_groups/
[admin@nodegrid remote_groups]# set remote_groups=emea-ng-admins
[admin@nodegrid remote_groups]# commit
[admin@nodegrid remote_groups]# show
remote_groups = emea-ng-admins
[admin@nodegrid remote_groups]# set remote_groups=emea-ng-admins,test
[+admin@nodegrid remote_groups]# commit
[admin@nodegrid remote_groups]# show
remote_groups = emea-ng-admins,test


Appendix

Appendix A: Troubleshooting:

In case an authentication provider cannot be setup successfully, the following steps can be performed from the command line of the Nodegrid

  1. ssh to the Nodegrid as admin users
  2. navigate to the root shell
[admin@nodegrid /]# shell

WARNING: Improper use of shell commands could lead to data loss,
the deletion of important system files or other unexpected result.
Please double-check your syntax when typing shell commands.

admin@nodegrid:~$ sudo su -

Ping Authentication Provider with FQDN

root@nodegrid:~# ping zpesystems.com
PING zpesystems.com (192.168.1.1): 56 data bytes
64 bytes from 192.168.1.1: seq=0 ttl=56 time=4.329 ms

Ping authentication provider with IP

root@nodegrid:~# ping 192.168.1.1
PING 192.168.1.1 (192.168.1.1): 56 data bytes
64 bytes from 192.168.1.1: seq=0 ttl=128 time=0.705 ms
64 bytes from 192.168.1.1: seq=1 ttl=128 time=0.724 ms
64 bytes from 192.168.1.1: seq=2 ttl=128 time=0.653 ms
64 bytes from 192.168.1.1: seq=3 ttl=128 time=0.564 ms

nslookup of Authentication provider

nslookup zpesystem.com
Server:    127.0.0.1
Address 1: 127.0.0.1 nodegrid.localdomain

Name:      zpesystem.com
Address 1: 192.168.1.1

ldapsearch against an Active Directory for an existing user:

root@nodegrid:~# ldapsearch -LLL -x -H ldap://192.168.1.1 -D 'Administrator@zpesystems.com' -W -b 'dc=zpesystems,dc=com' '(cn=Justin Wright)'
Enter LDAP Password:
dn: CN=Justin Wright,CN=Users,DC=zpesystems,DC=com
objectClass: top
objectClass: person
objectClass: organizationalPerson
objectClass: user
cn: Justin Wright
sn: Wright
givenName: Justin
distinguishedName: CN=Justin Wright,CN=Users,DC=zpesystems,DC=com
instanceType: 4
whenCreated: 20180326195942.0Z
whenChanged: 20180326200356.0Z
displayName: Justin Wright
uSNCreated: 520377
memberOf: CN=Sample Administrators,CN=Users,DC=zpesystems,DC=com
uSNChanged: 520392
name: Justin Wright
objectGUID:: 9FsZeFyyak+tScZRVyqPTw==
userAccountControl: 66048
badPwdCount: 0
codePage: 0
countryCode: 0
badPasswordTime: 0
lastLogoff: 0
lastLogon: 0
pwdLastSet: 131665679826212339
primaryGroupID: 513
objectSid:: AQUAAAAAAAUVAAAAjw/uUGff8yuIeUgVfQQAAA==
accountExpires: 9223372036854775807
logonCount: 0
sAMAccountName: jwright
sAMAccountType: 805306368
userPrincipalName: justin.wright@zpesystems.com
objectCategory: CN=Person,CN=Schema,CN=Configuration,DC=zpesystems,DC=com
dSCorePropagationData: 20180326195942.0Z
dSCorePropagationData: 16010101000000.0Z
lastLogonTimestamp: 131665682364029623

# refldap://ForestDnsZones.zpesystems.com/DC=ForestDnsZones,DC=zpesystems,DC=com
# refldap://DomainDnsZones.zpesystems.com/DC=DomainDnsZones,DC=zpesystems,DC=com
# refldap://zpesystems.com/CN=Configuration,DC=zpesystems,DC=com

ldapsearch against an Active Directory for an existing group:

root@nodegrid:~# ldapsearch -LLL -x -H ldap://192.168.1.1 -D 'Administrator@zpesystems.com' -W -b 'dc=zpesystems,dc=com' '(cn=Sample Administrators)'
Enter LDAP Password:
dn: CN=Sample Administrators,CN=Users,DC=zpesystems,DC=com
objectClass: top
objectClass: group
cn: Sample Administrators
member: CN=Justin Wright,CN=Users,DC=zpesystems,DC=com
distinguishedName: CN=Sample Administrators,CN=Users,DC=zpesystems,DC=com
instanceType: 4
whenCreated: 20180326200105.0Z
whenChanged: 20180326200649.0Z
uSNCreated: 520386
uSNChanged: 520395
name: Sample Administrators
objectGUID:: F/BsFBsnVE+Sidvmc3M8YQ==
objectSid:: AQUAAAAAAAUVAAAAjw/uUGff8yuIeUgVfgQAAA==
sAMAccountName: Sample Administrators
sAMAccountType: 268435456
groupType: -2147483646
objectCategory: CN=Group,CN=Schema,CN=Configuration,DC=zpesystems,DC=com
dSCorePropagationData: 16010101000000.0Z

# refldap://ForestDnsZones.zpesystems.com/DC=ForestDnsZones,DC=zpesystems,DC=com
# refldap://DomainDnsZones.zpesystems.com/DC=DomainDnsZones,DC=zpesystems,DC=com
# refldap://zpesystems.com/CN=Configuration,DC=zpesystems,DC=com

ldapsearch against an OpenLDAP server for an existing user:

root@nodegrid:~# ldapsearch -LLL -x -H ldap://192.168.1.1 -W -D 'cn=Sample User,ou=users,dc=zpe,dc=net' -b 'dc=zpe,dc=net' 'cn= Sample User
Enter LDAP Password:
dn: cn= Sample User,ou=users,dc=zpe,dc=net
givenName: Sample
gidNumber: 501
homeDirectory: /home/users/sampleuser
sn: User
objectClass: inetOrgPerson
objectClass: posixAccount
objectClass: top
uidNumber: 1015
uid: suser
userPassword::
cn: Sample User
cn: suser

ldapsearch with LDAPS connection

root@nodegrid:~# LDAPTLS_REQCERT=never ldapsearch -LLL -x -H ldaps://192.168.1.1:636 -D 'Administrator@zpesystems.com' -W -b 'dc=zpesystems,dc=com' '(cn=emea-ng-admins)'
Enter LDAP Password:
dn: CN=emea-ng-admins,OU=Ireland,OU=EMEA,DC=zpesystems,DC=com
objectClass: top
objectClass: group
cn: emea-ng-admins
member: CN= Sample User,OU=Ireland,OU=EMEA,DC=zpesystems,DC=com
distinguishedName: CN=emea-ng-admins,OU=Ireland,OU=EMEA,DC=zpesystems,DC=com
instanceType: 4
whenCreated: 20170731130317.0Z
whenChanged: 20170731134503.0Z
uSNCreated: 405624
uSNChanged: 405649
name: emea-ng-admins
objectGUID:: xcFVSeQP2EWSx5JBY4iqmA==
objectSid:: AQUAAAAAAAUVAAAAjw/uUGff8yuIeUgVegQAAA==
sAMAccountName: emea-ng-admins
sAMAccountType: 268435456
groupType: -2147483646
objectCategory: CN=Group,CN=Schema,CN=Configuration,DC=zpesystems,DC=com
dSCorePropagationData: 16010101000000.0Z

# refldaps://ForestDnsZones.zpesystems.com/DC=ForestDnsZones,DC=zpesystems,DC=com
# refldaps://DomainDnsZones.zpesystems.com/DC=DomainDnsZones,DC=zpesystems,DC=com
# refldaps://zpesystems.com/CN=Configuration,DC=zpesystems,DC=com

ldapsearch with TLS_Start connection

root@nodegrid:~# LDAPTLS_REQCERT=never ldapsearch -LLL -x -Z -H ldap://192.168.1.1 -D 'Administrator@zpesystems.com' -W -b 'dc=zpesystems,dc=com' '(cn=emea-ng-admins)'
Enter LDAP Password:
dn: CN=emea-ng-admins,OU=Ireland,OU=EMEA,DC=zpesystems,DC=com
objectClass: top
objectClass: group
cn: emea-ng-admins
member: CN=Sample User,OU=Ireland,OU=EMEA,DC=zpesystems,DC=com
distinguishedName: CN=emea-ng-admins,OU=Ireland,OU=EMEA,DC=zpesystems,DC=com
instanceType: 4
whenCreated: 20170731130317.0Z
whenChanged: 20170731134503.0Z
uSNCreated: 405624
uSNChanged: 405649
name: emea-ng-admins
objectGUID:: xcFVSeQP2EWSx5JBY4iqmA==
objectSid:: AQUAAAAAAAUVAAAAjw/uUGff8yuIeUgVegQAAA==
sAMAccountName: emea-ng-admins
sAMAccountType: 268435456
groupType: -2147483646
objectCategory: CN=Group,CN=Schema,CN=Configuration,DC=zpesystems,DC=com
dSCorePropagationData: 16010101000000.0Z

# refldap://ForestDnsZones.zpesystems.com/DC=ForestDnsZones,DC=zpesystems,DC=com
# refldap://DomainDnsZones.zpesystems.com/DC=DomainDnsZones,DC=zpesystems,DC=com
# refldap://zpesystems.com/CN=Configuration,DC=zpesystems,DC=com

To add a detailed output of the communication between client and server, ldapserach can use parameters -d -1. Note that this will create a very verbose output including induvidaul packages and certificate exchange details.

Example:

root@nodegrid:~# LDAPTLS_REQCERT=never ldapsearch -LLL -x -Z -H ldap://192.168.1.1 -D 'Administrator@zpesystems.com' -W -b 'dc=zpesystems,dc=com' '(cn=emea-ng-admins)'  -d -1

    • Related Articles

    • How to Configure Okta in Nodegrid

      How to configure Single Sign-On authentication in Nodegrid using Okta This document will guide the configuration required in Nodegrid, and Okta. Nodegrid currently supports SP-Initiated SSO, and IdP-Initiated SSO. Create the Nodegrid Application ...
    • User Group Permissions

      Nodegrid allows you to create users and groups, and set the appropriate permissions for them. For example, user John belongs to group system-test, and the this group will be able to configure Nodegrid, track system information, and terminate session. ...
    • How to configure Single Sign-On authentication in Nodegrid using Duo.

      This document will guide the configuration required in Nodegrid, Duo Admin Panel, and Duo Access Gateway.  Duo Access Gateway Setup  1. Install Duo Access Gateway on a server in your DMZ. Follow the instructions for deploying the server, configuring ...
    • LDAP Authorization and Authentication

    • RADIUS authentication and authorization

      RADIUS (Remote Access Dial In User Service ) provides central authentication for users. It is a client server protocol that runs on application layer. It can use either TCP or UDP as transport. Normally, all users have access to use all devices ...
