Creating a Dashboard

How to: Add OpenSearch Temperature visualization to Nodegrid

The Dashboard (WebUI only) allows visual presentations of Event activities, Managed Device details, and data monitoring. Multiple dashboards can be created for different purposes. For example, one to monitor managed device data points (i.e., Power Consumption, Voltage, Current, Temperature, Fan speed, etc.) Another dashboard can monitor Nodegrid events such as authentication failures, login, and logout.

This document assumes a Temperature (Temp&Hum or AirFlow&Temp) sensor has been installed in a USB port on Nodegrid and that has been collecting data.

Install and Configure Sensor

Insert a Temperature and Humidity (T&H) or Airflow and Temperature (A&T) sensor into a USB port on a NodeGrid Device.

The sensor will be automatically discovered and shown on:

Access WebUI

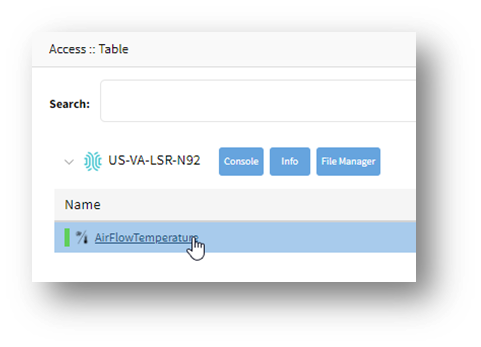

Managed Devices


Enable Monitoring for the USB Sensor

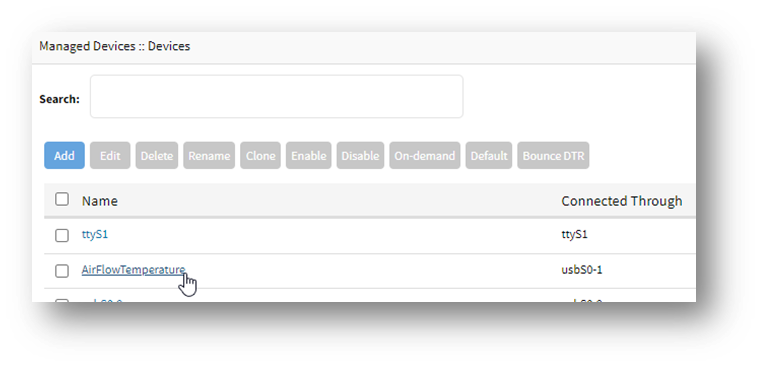

Navigate to Managed Devices :: Devices :: AirFlowTemperature :: Management

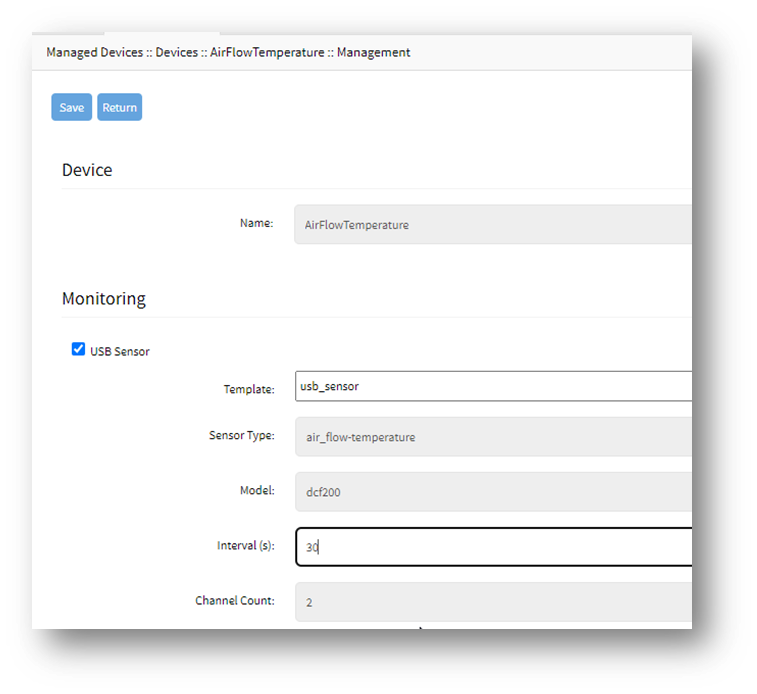

Check USB Sensor under the Monitoring section.

Configure interval, 30 seconds in the screen below, 120 seconds is default.


Configure Air Temperature (AirFlowTemperature_cn1) channel 1 to Fahrenheit and Save



Navigate to Managed Devices :: Devices :: AirFlowTemperature :: Sensor Channels and identity the channel 0 as the sensor for Air Velicity and channel 1 for Air Temperature.

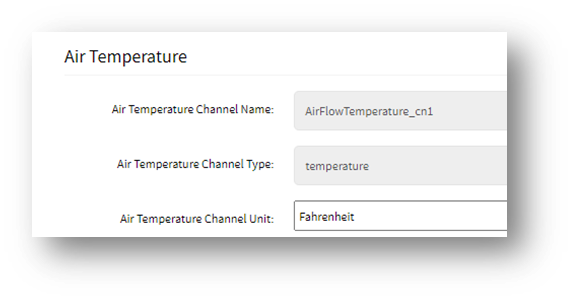

Select AirFlowTemperature_cn1 and configure it for Fahrenheit degrees, save changes.


Dashboard configuration

Create a Discover Search


Log in to NodeGrid WebUI and Navigate to Dashboard.

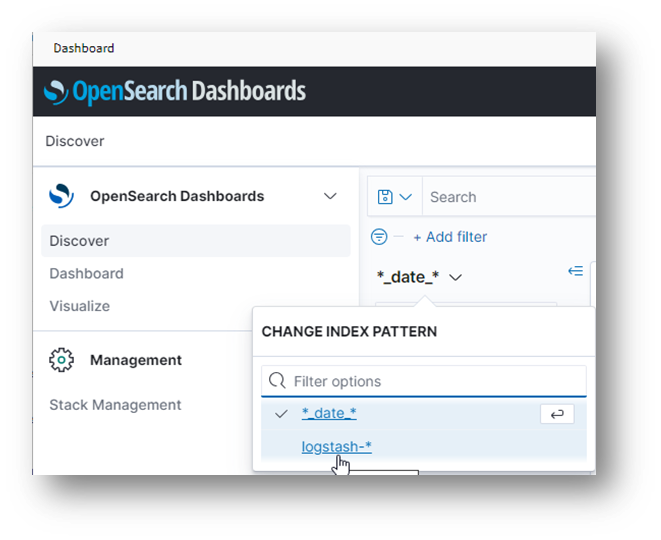

Click on Discover and then Change the Index Pattern from ‘*_date_*’ to ‘logstash-*’

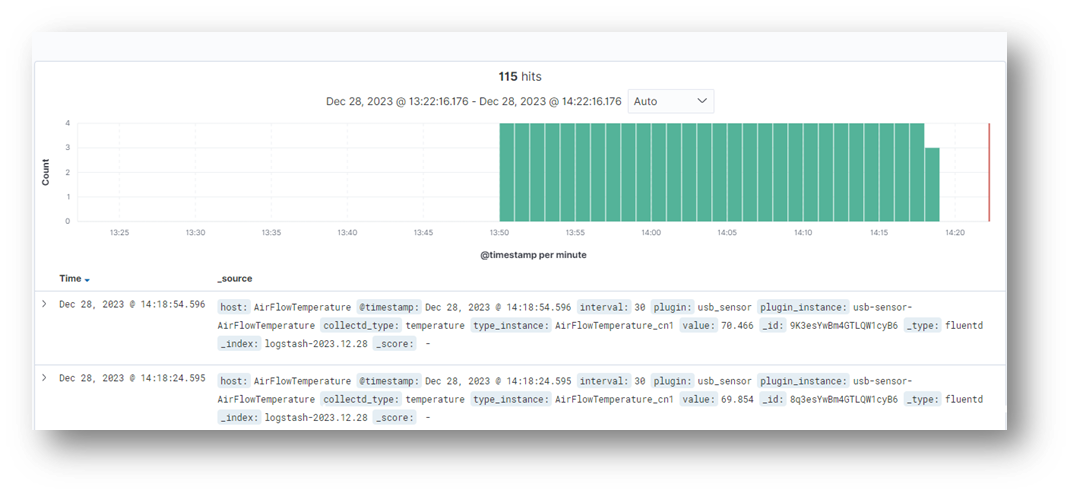

It will display the reading for channel 0 (air flow in this sample) and channel 1 (temperature)

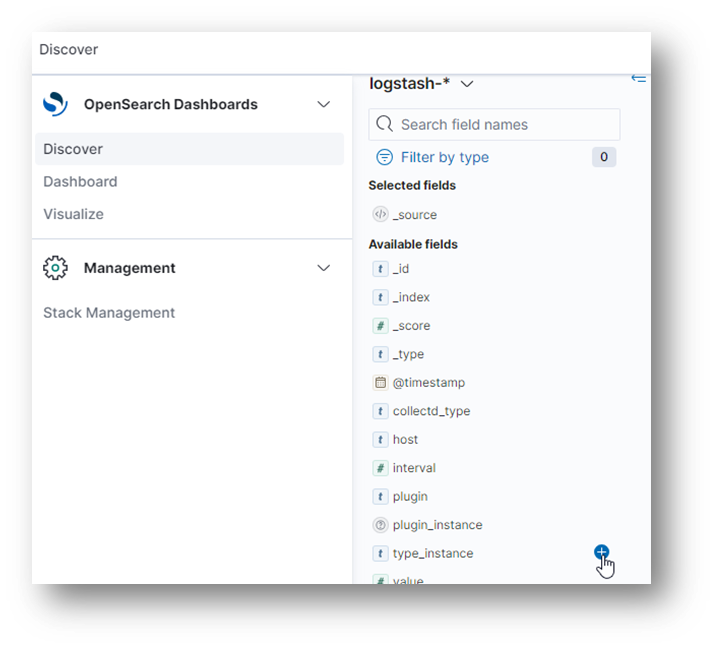

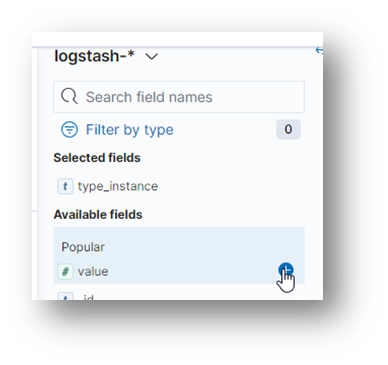

From the Available fields, add the type_instance by hovering over and clicking on the (+) sign

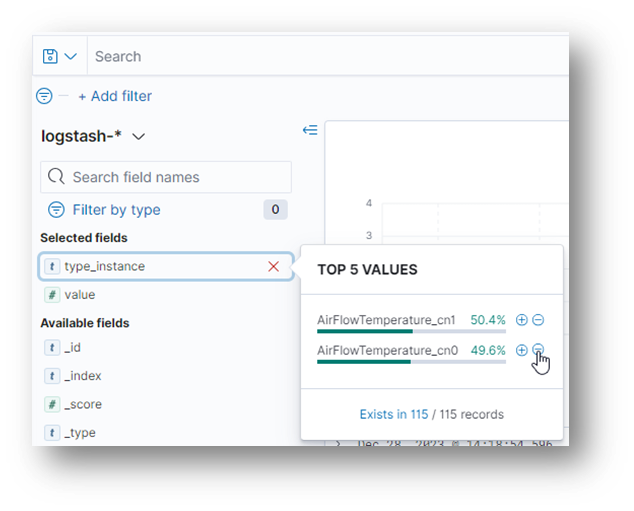

Click the type_instance on the Selected fields section, and remove the AirFlowTemperature_cn0 since this is the Air speed. This will leave the search with only the AirFlowTemperature_cn1, temperature readings.


From the Available fields, add the value by hovering over and clicking on the (+) sign

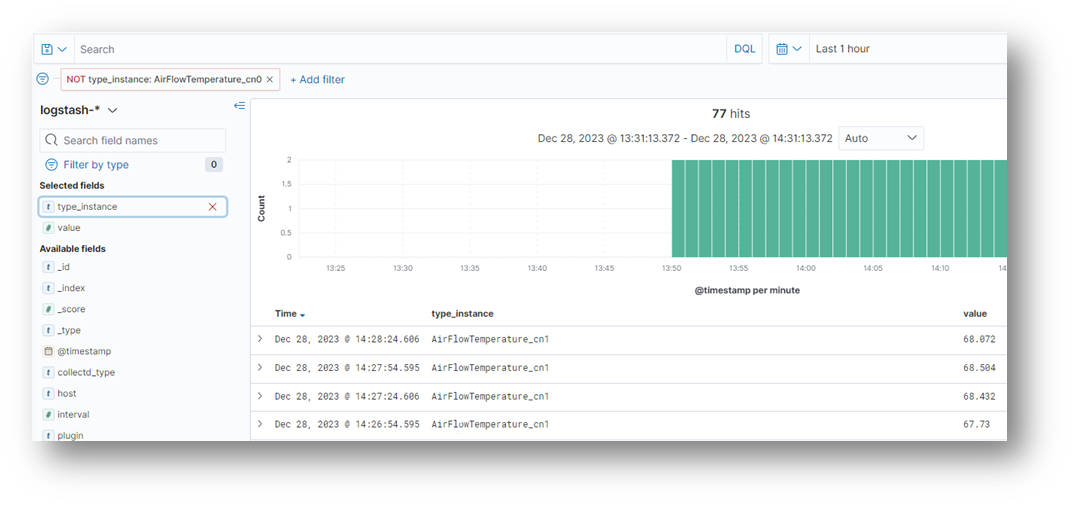

The search will show datapoint with Time, type_instance (Temp only) and its value

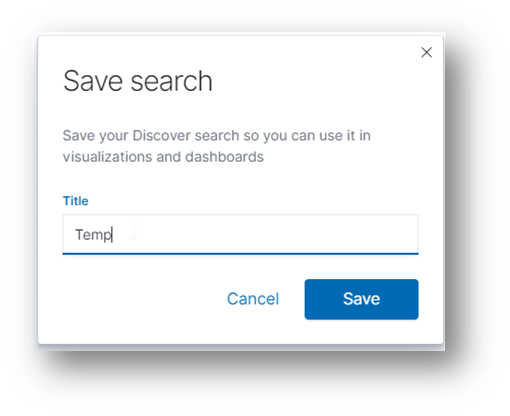

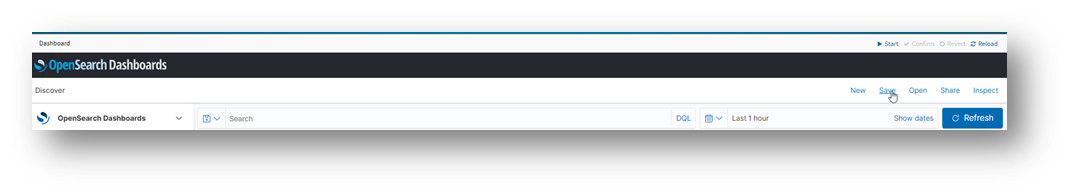

Click Save and Input a name


Create a Visualization

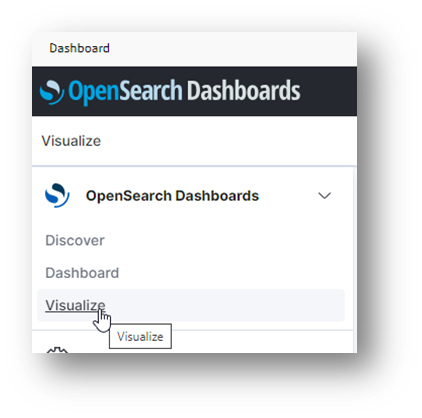

From OpenSearch Dashboards select Visualize


Click on Create visualization

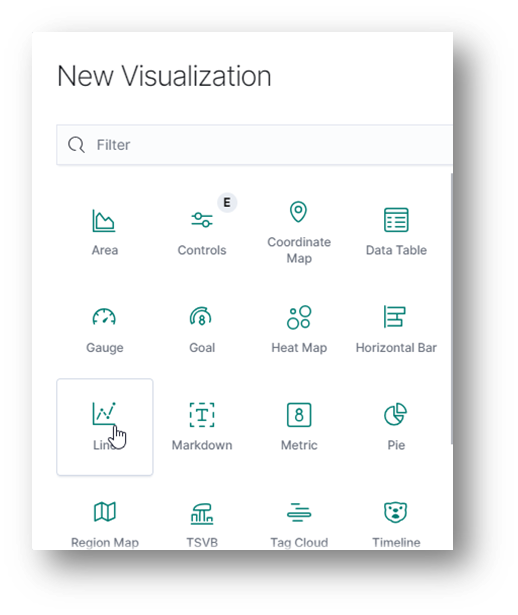

Select Line

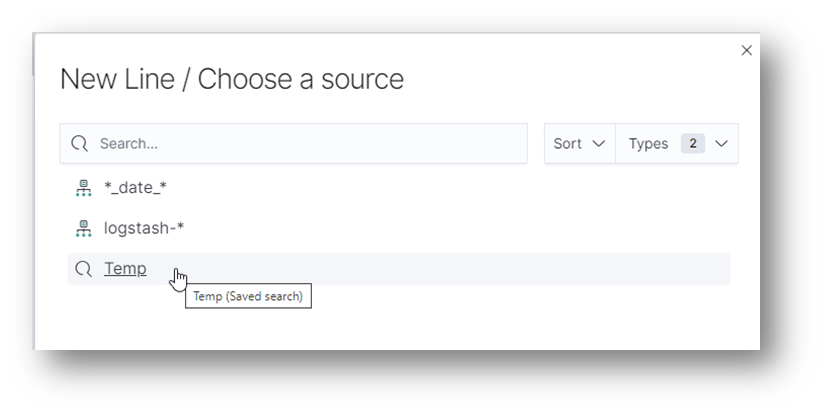

Select source, in this case the OpenSearch created in the section above called Temp

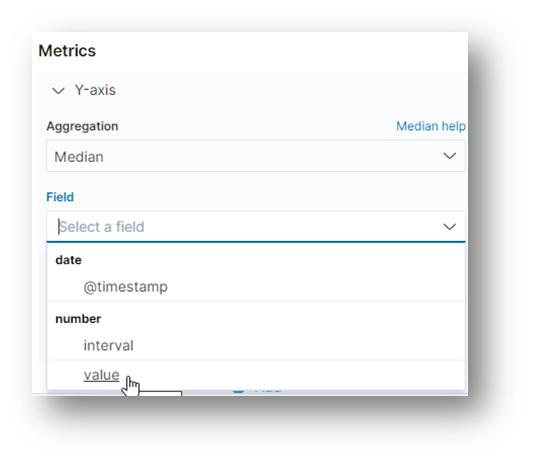

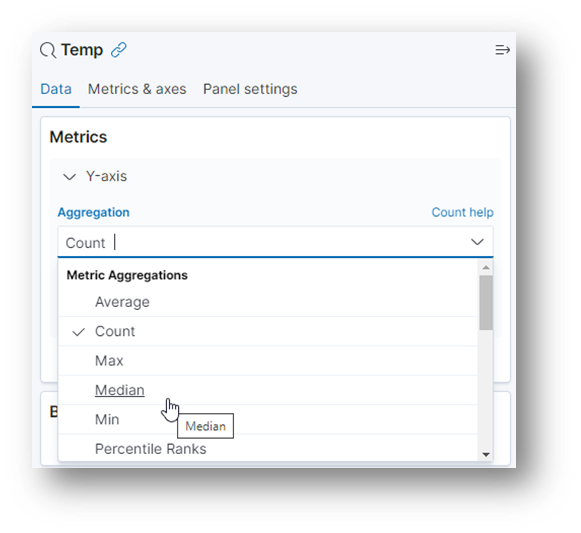

For Y-axis Aggregation select Median


For Field Select value



Input the Custom label Temp (F)

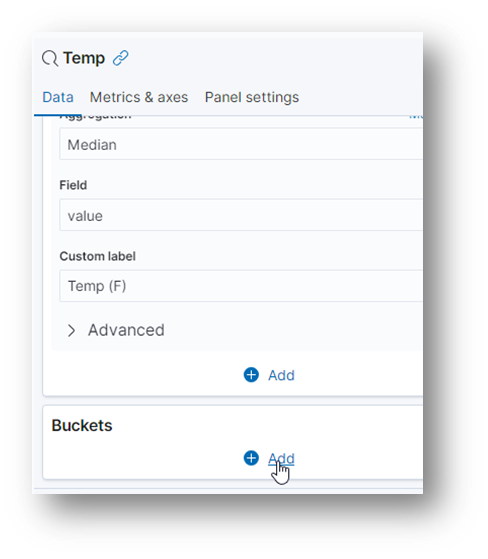

In the section Buckets, click the Add button, and select X-axis and select the Aggregation as Date Histogram



Then click Update

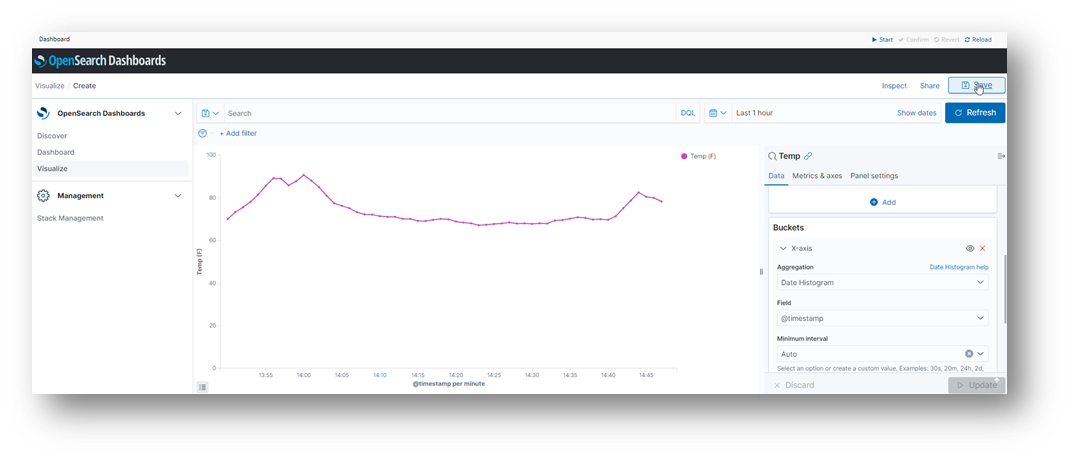

The page will be updated and show something similar like this:


Click the Save button

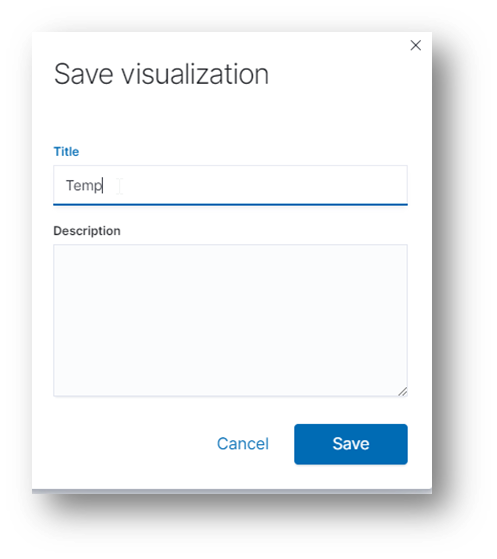

Input the Visualization name and then press Save



Edit Nodegrid Dashboard to add visualization

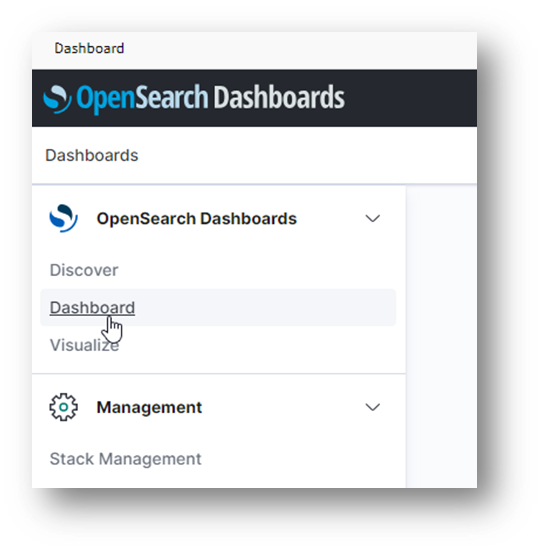

Click Dashboard


Edit the Nodegrid Dashboard

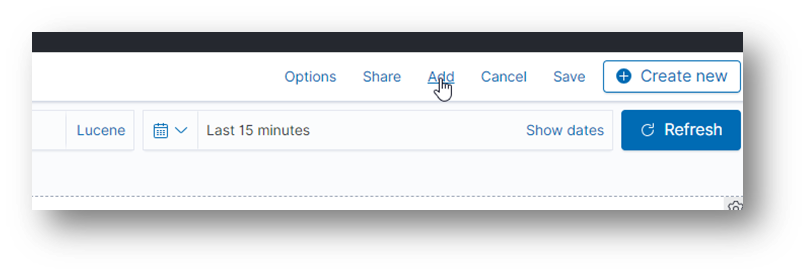

Click Add

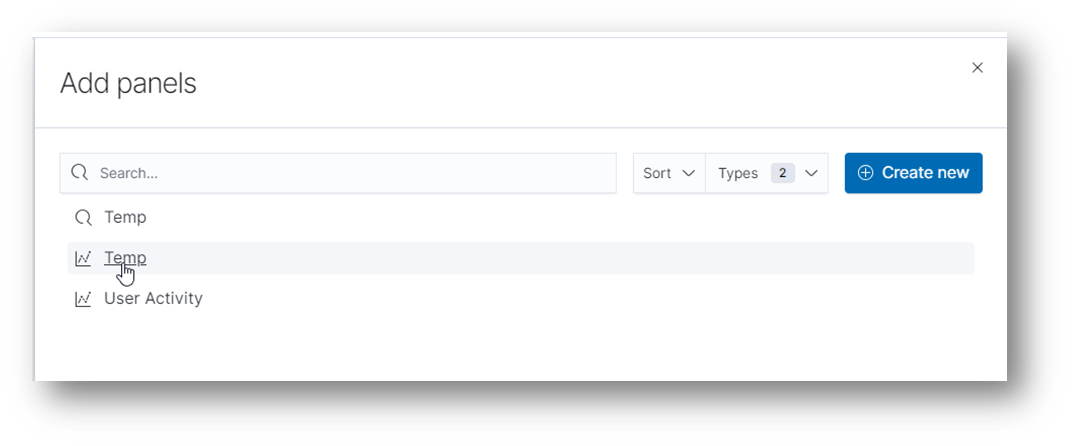

Select the Temp Visualization (you can add the Discovery Search as well)


Then click Save

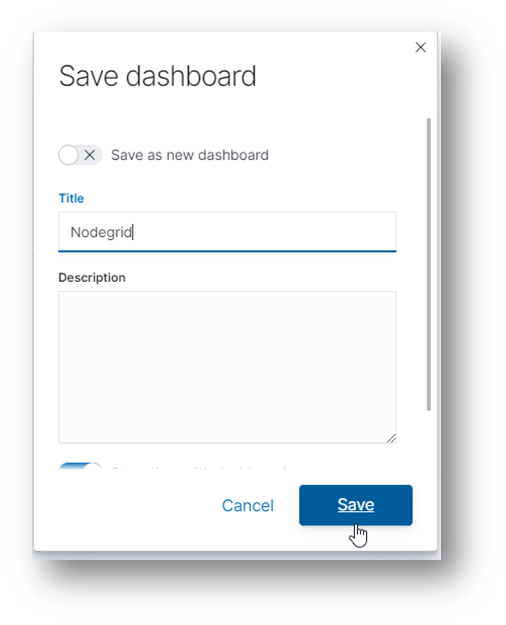

Select the Title Nodegrid

Click Save

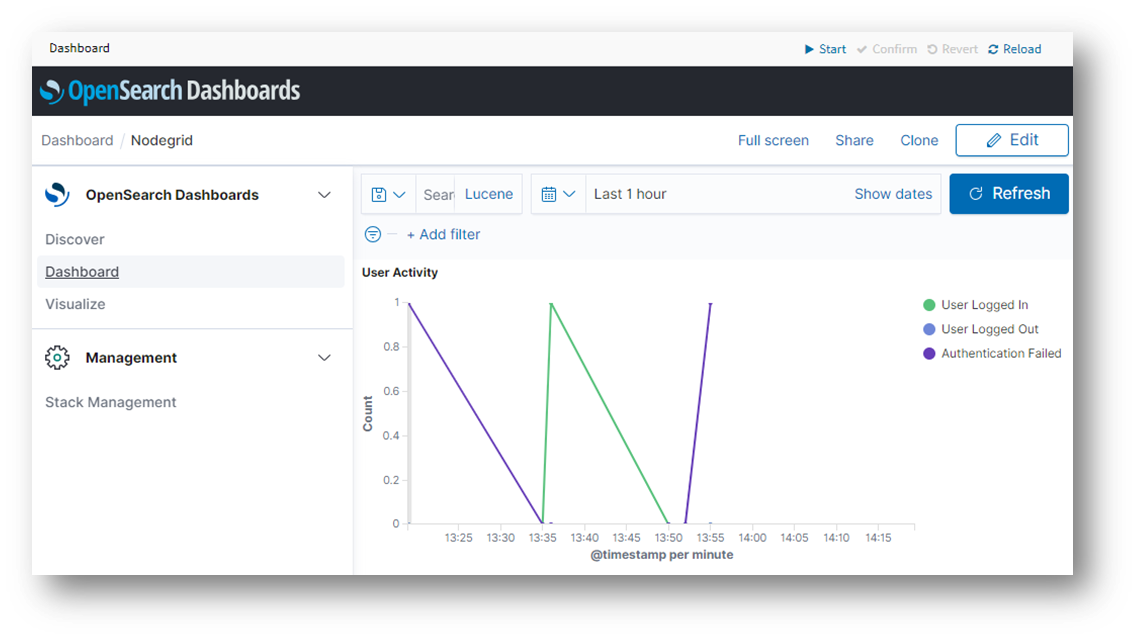

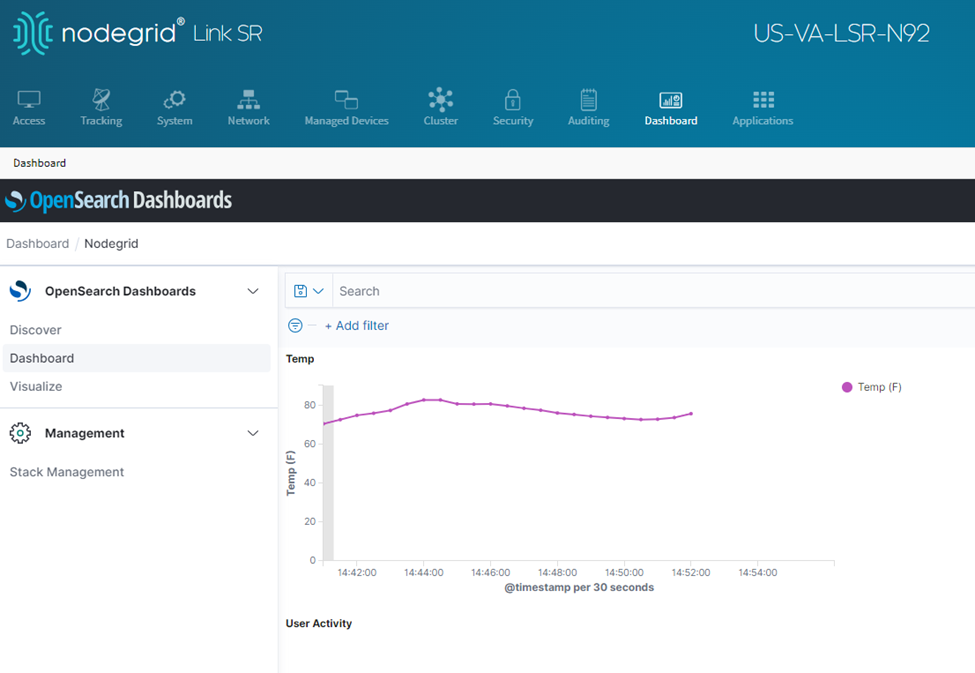

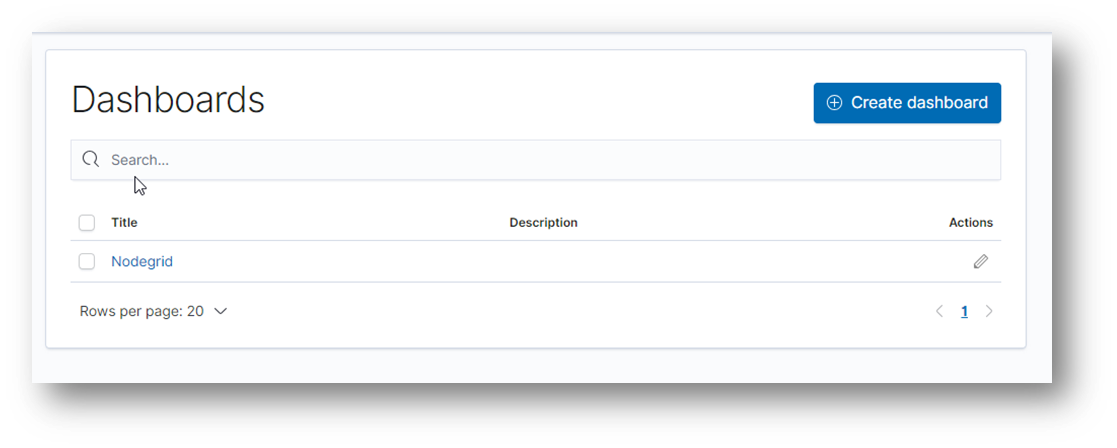

Dashboard will be shown as follows:
