Configuring DHCP Traffic Flow using a Masquerade Firewall Rule
Overview
This article is for creating a firewall rule to masquerade all packet from the DHCP subnet where
the output interface is the one connected to the internet.
Setup the Masquerade:
From the Web UI:

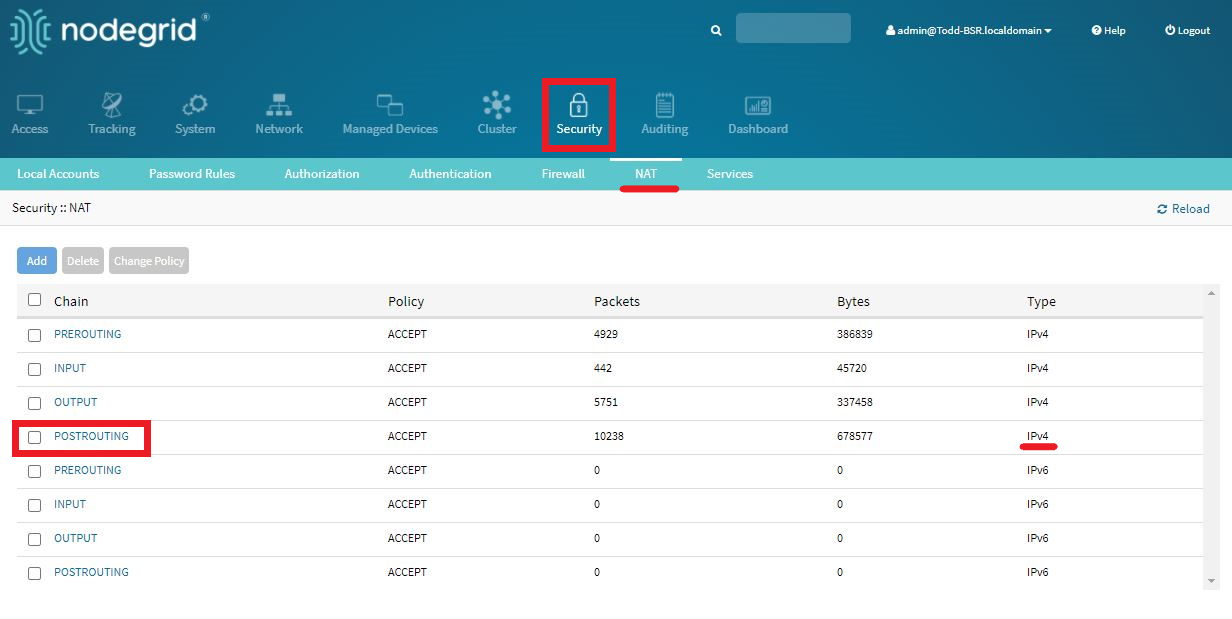

- Click on the Security icon and select NAT from the menu bar
- Click on the POSTROUTING with IPv4

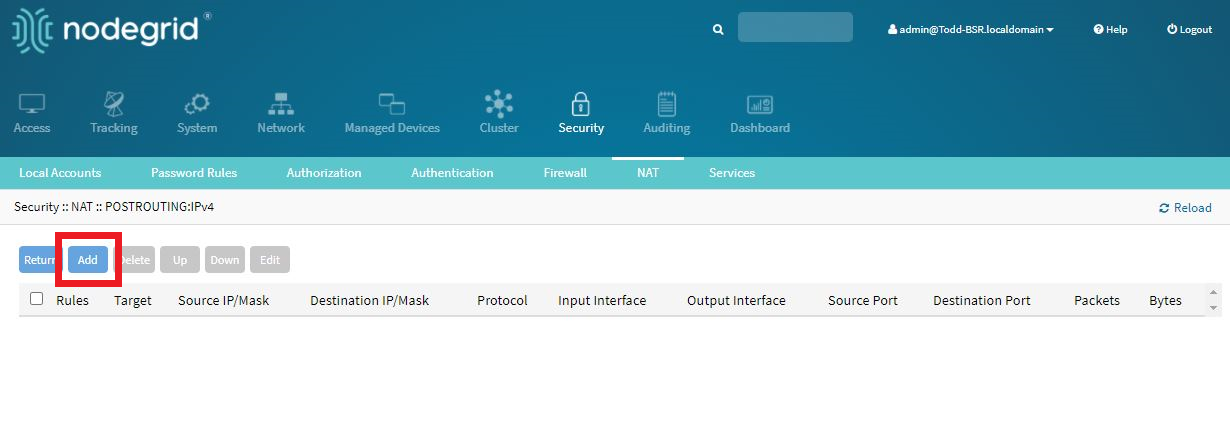

- Next click on ADD

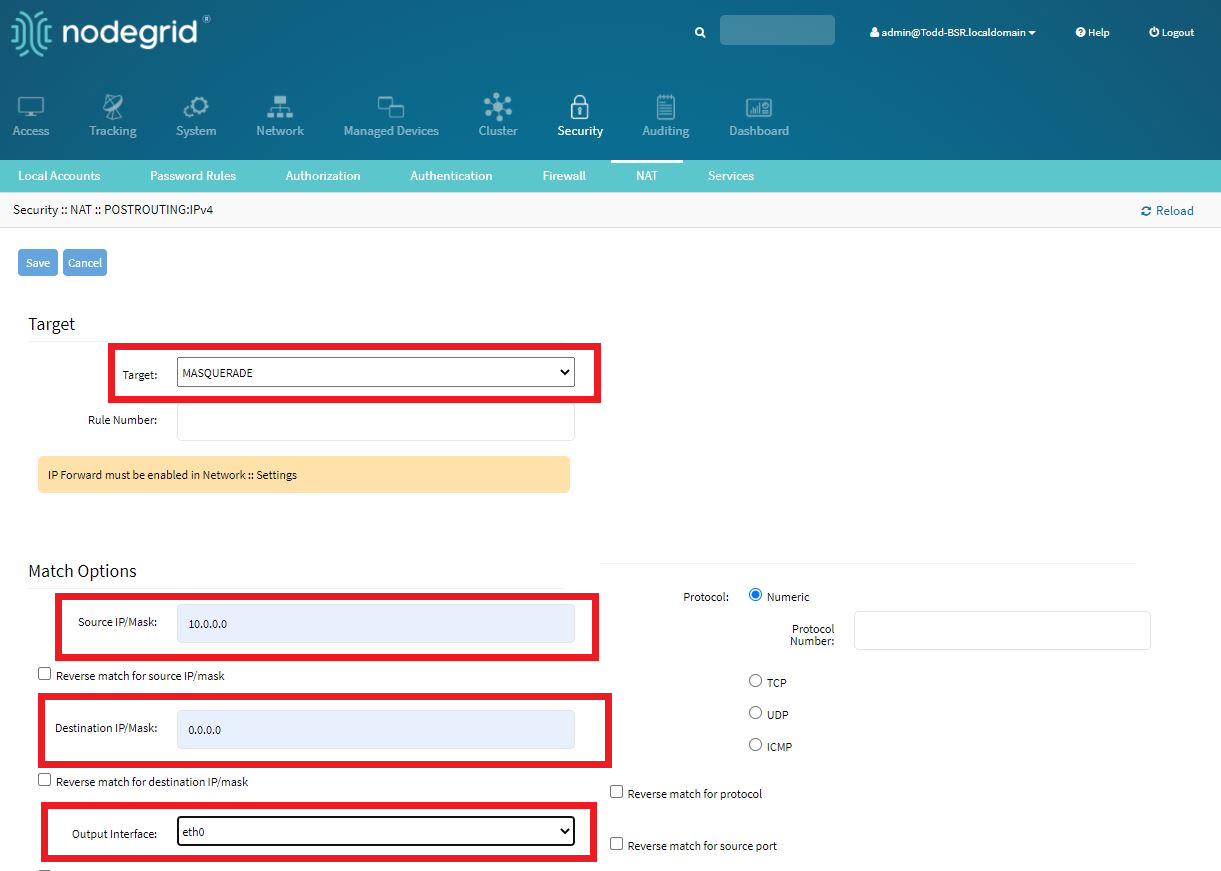

- Change the Target drop down to MASQUERADE
- Add the SourceIP/Mask (which is the subnet of the DHCP Network)
- Make sure that the Destination IP/Mask is 0.0.0.0 if you want to allow all traffic out to the internet
- Make sure to select the correct Output interface (that you want traffic to flow out of)

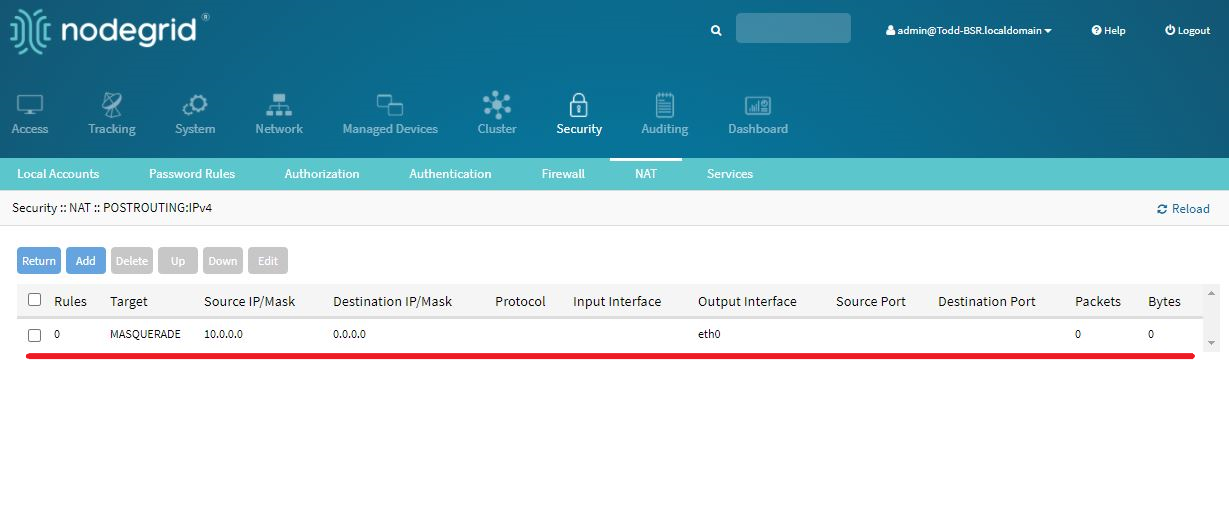

- The POSTROUTING should look something like this:
