Apply HTTPS certificate in Nodegrid via WebUI

Apply HTTPS certificate in Nodegrid via WebUI

Follow these steps to apply HTTPS certificate via WebUI
Prerequisite:
- Certificate signed by CA (.pem or .crt)

Steps for version 6.0.x

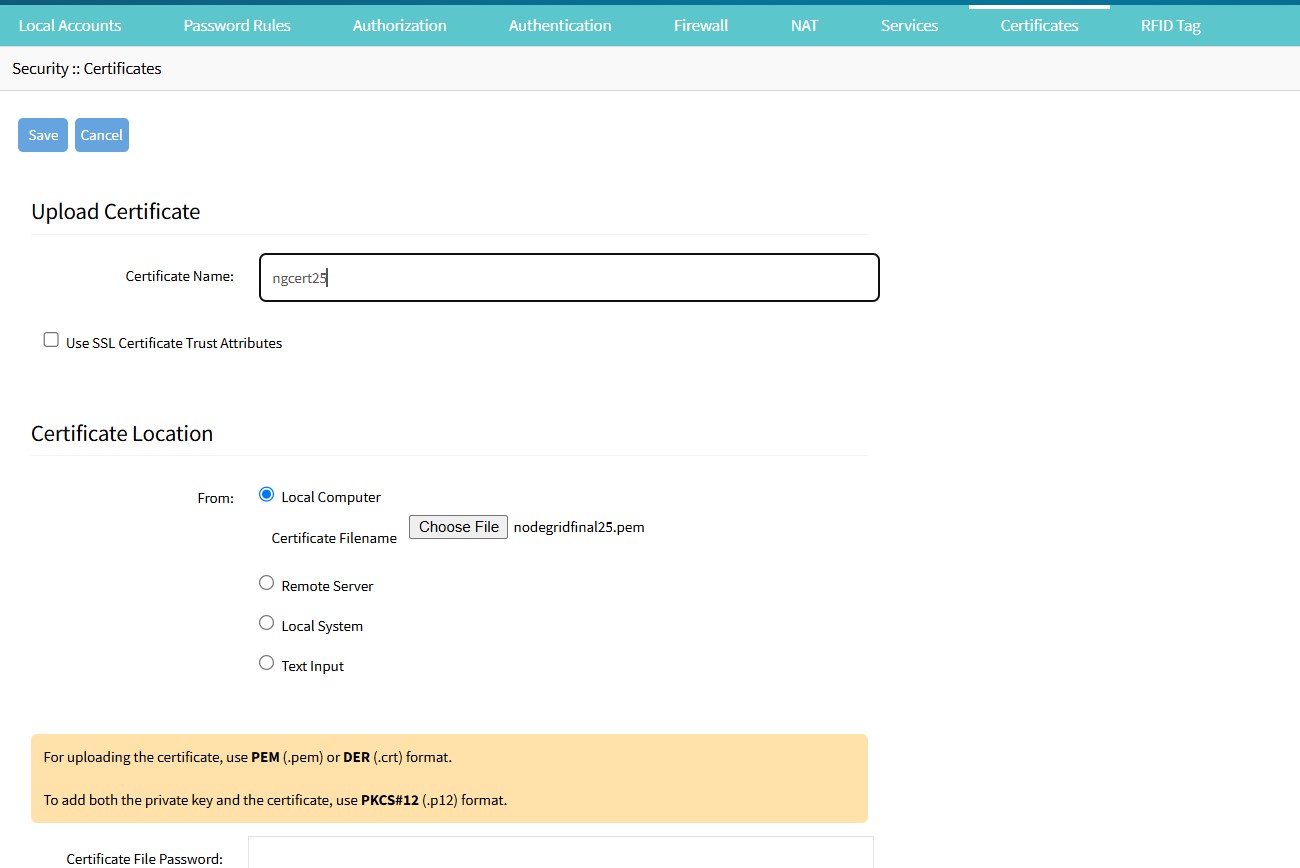

1. Login as admin in WebUI and go to Security::Certificates
2. Click Upload Certificate to add the certificate
3. Enter the required certificate name
4. In Certificate Location, select the appropriate location for the certificate. Enter the password if it is given while generating certificate.



5. Click Save to save the settings. Uploaded certificate will be available in the certificate list
6. Select the certificate from the list and click Apply as System Certificate. The new certificate will be applied.

You can also upload certificate from System::Toolkit::System Certificate::Upload Certificate

Steps for version 5.10.x and 5.8.x
1. Go to System::Toolkit::System Certificate::Upload Certificate
2. Select the location for the Certificate
3. Enter the passphrase if required
4. Click Apply to save the settings and applying the certificate.

Note: You might need to restart the browser to see the changes applied in the certificate

If you see the error related to private key, refer this knowledge base to solve it,
