About the Status page to check processes or reboot a Nodegrid device

About the Status page to check processes or reboot a Nodegrid device

To enable the Status page from GUI:
  1. Navigate to Security :: Services :: General Services
  2. Check the option for Enable Services Status Page
  3. Optional: Check the option for Enable reboot on Services Status Page
  4. Click Commit

To access the Status page from GUI:

  1. Navigate to https://x.x.x.x/services/status
    1. Note: Replace x.x.x.x with the IP of the Nodegrid device
  2. Login as user associated with the admin group

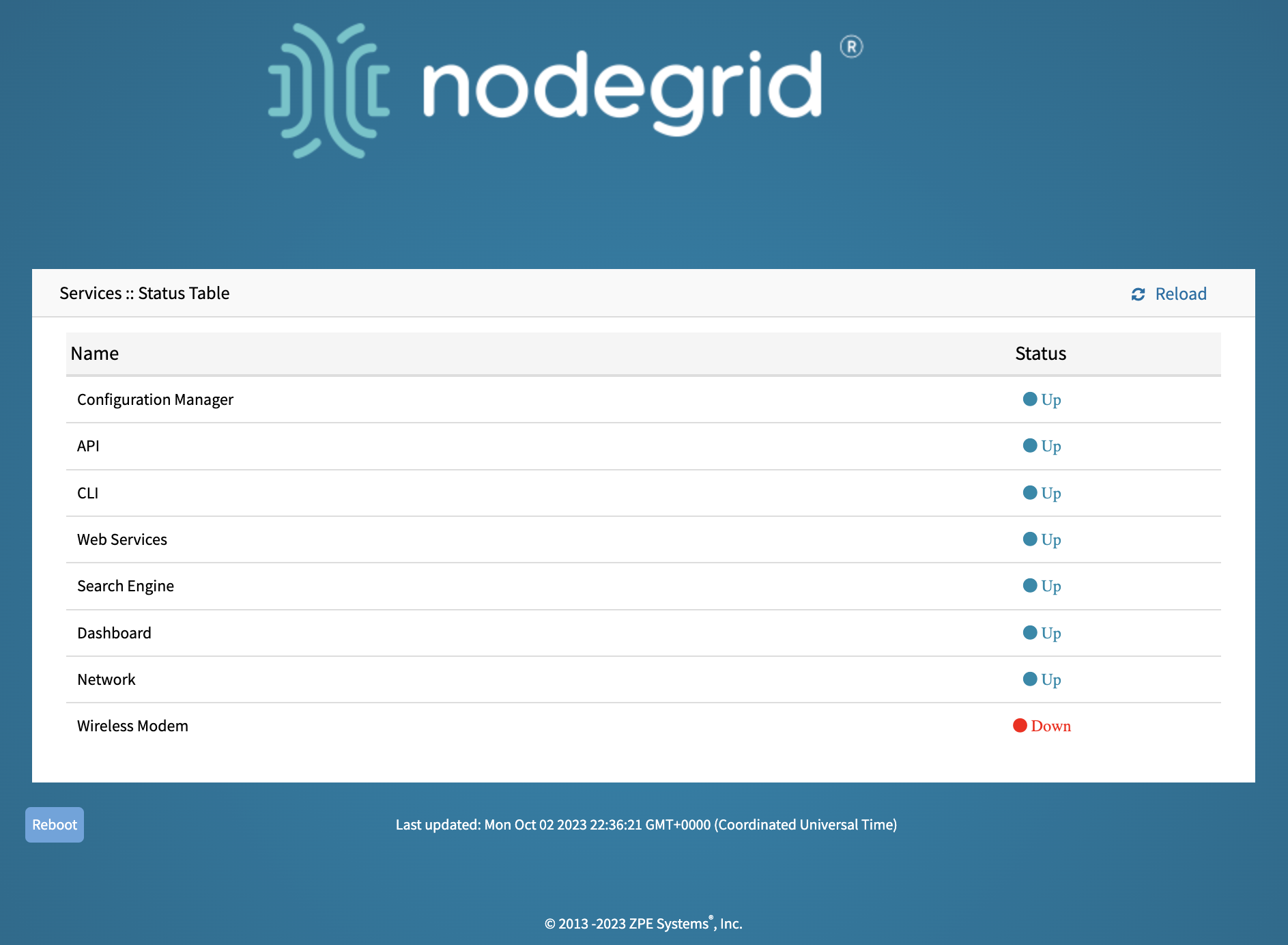

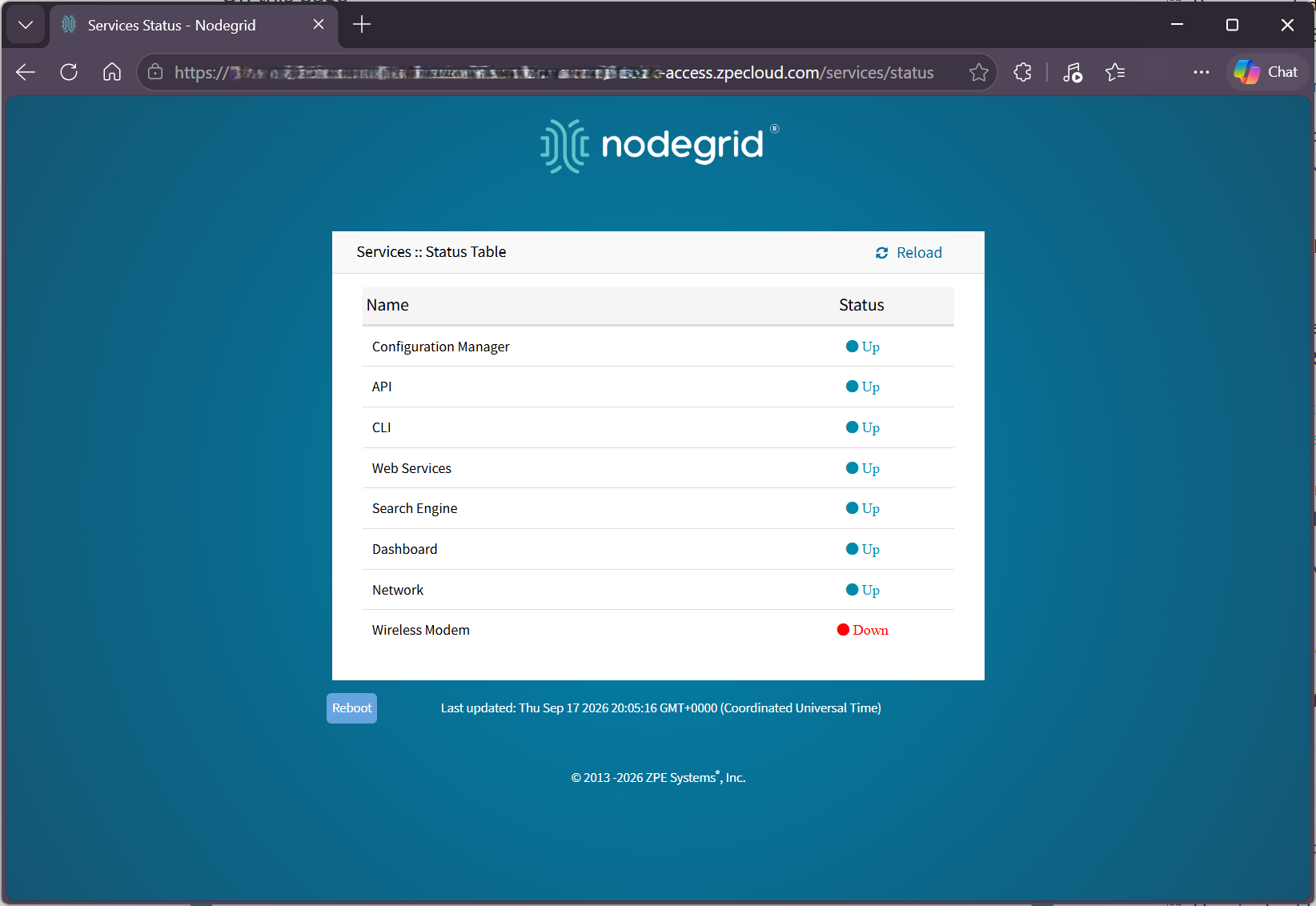

The Status page will display the current status of critical system process.  If enabled, there is a reboot button which will ensure all processes are restarted in the correct order.  This feature was introduced v5.2.14, v5.4.9, & v5.6.x, and is available on all newer versions.  Here is an example of this page:
